Serial Data Modems

Wireless Serial Modems are RS232 or RS485 data modems that enable cost effective, two-way communications between serial devices.

Serial Data Modems

Wireless Serial Modems

Wireless Serial Modems

Wireless Serial Modems are RS232 or RS485 data modems that enable cost effective, two-way communications between serial devices such as PLCs, RTUs, and other industrial machinery to host monitoring and control systems. Designed with a long range, license-free 900MHz or 2.4GHz wireless transceiver, they deliver high performance in a compact DIN-rail or panel mount form factor ideally suited for integrated industrial applications.

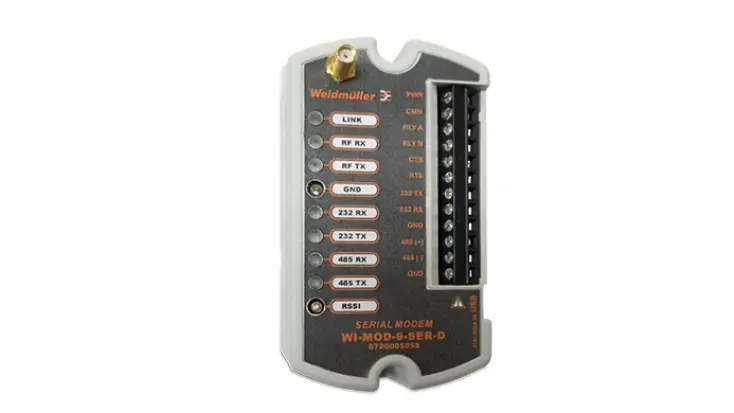

WI-MOD-9-SER-D & WI-MOD-24-SER-D Serial Data Modem

Offering scalability from simple to complex deployments, the WI-MOD-SER-D couples data rates up to 500kbps with low latency performance ideal for demanding Modbus or Profibus applications. Reliability is maximized through interference immune frequency hopping spread spectrum technology while security is assured via data encryption to the AES 256-bit standard.

WI-MOD-9-SER-D & WI-MOD-24-SER-D Serial Data Modem
Features
  • License-free operation in North and South America
  • Wireless data up to 500 Kb/s
  • 902-928 MHz, 1W, frequency hopping spread spectrum
  • 2.4GHz, 100mW frequency hopping spread spectrum

Availability

Type

Description

Temperature Range

Part Number

WI-MOD-9-SER-DMultihop Serial
900Mhz Modem
-40° to +70°C6720005055
WI-MOD-24-SER-DMultihop Serial
2.4Mhz Modem
-40° to +70°C6720005056

WI-MOD-9-D Serial Data Modem

WI-MOD-9-D Serial Data Modem

WI-MOD-9-D Serial Data Modem

Features

  • License-free operation in North and South America

  • Wireless data up to 115.2 Kb/s

  • 902-928 MHz, 1W, frequency hopping spread spectrum

  • Typical line-of-sight distance 20 miles North America (4W ERP)

  • One serial data port— RS232 and RS485 connections provided

  • Serial data up to 115.2Kb/s

  • Configuration by Hayes AT commands or Windows Configuration software

Availability

Type

Description

Temperature Range

Part Number

WI-MOD-9-DSerial 900Mhz Modem-40° to +70°C6720005050
