Connection data | ||
| Original Field Wire Adapter | Card edge connection to Weidmüller adapter | Card edge connection to Weidmüller adapter |
| Type | Tension Clamp, OEM | Tension Clamp, OEM |
| Control side | One 3.5 pitch 12-point S2L connector | One 3.5 pitch 22-point S2L connector |
| Type | Tension type connection | Tension type connection |
Rated data | ||
| Rated voltage | 150V max. | 150V max. |
| Max. current per channel | 5A | 5A |
| Operating temperature | 0°C to +50°C | 0°C to +50°C |
| Storage temperature | 0°C to +50°C | 0°C to +50°C |
Approvals | ||
| Standards | cURus (E141197) | cURus (E141197) |
| Physicals | Designed to fit in existing I/O rack | Designed to fit in existing I/O rack |
| Note | Cabling not included | Cabling not included |
Ordering data | ||
| Model | Qty | Part No. |

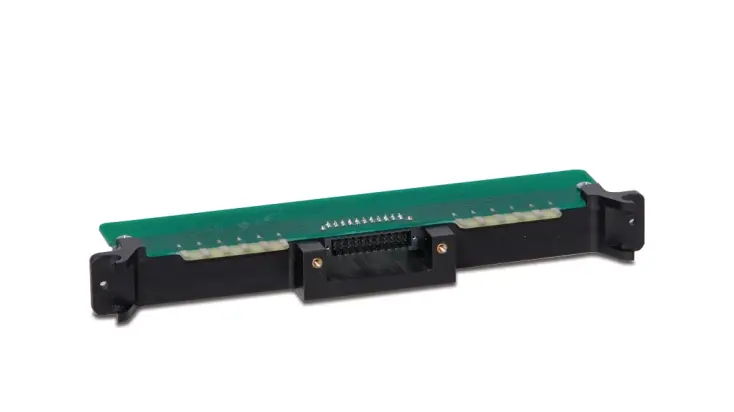

| 12-point IPC-620 carrier | 1 | 6720000787 |

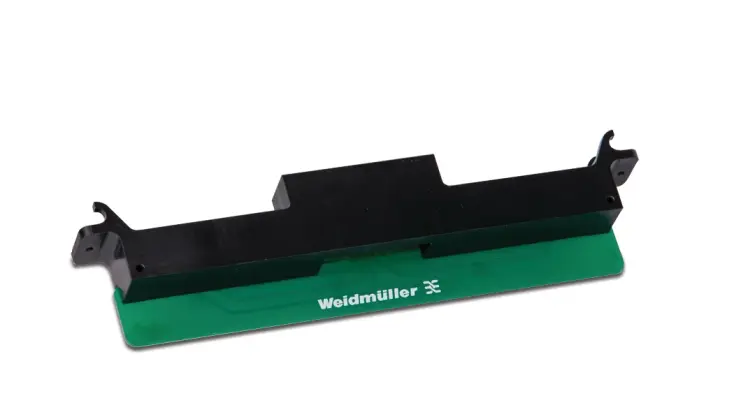

| 22-point IPC-620 carrier | 1 | 6720000788 |
| Note | Reference Honeywell Terminal Block 621-9949 | Reference Honeywell Terminal Block 621-9950 |
Connection data | ||
| Process side | One 24-point SL 5.00 pitch header to mate to legacy connectors | |
| Type | Screw type connection, OEM | |
| Control side | One 3.5 pitch 24-point S2L header | |
| Type | Tension type connection | |
Rated data | ||
| Rated voltage | 50V max. | |
| Max. current per channel | 3.0A per point max. | |
| 10 Amps per whole assembly | ||
| Operating temperature | 0°C to +50°C | |
| Storage temperature | 0°C to +50°C | |
Approvals | ||
| Standards | cURus (E141197) | |
| Physicals | Designed to fit in existing I/O rack | |
| Note | Cabling not included | |
Ordering data | ||
| Model | Qty | Part No. |

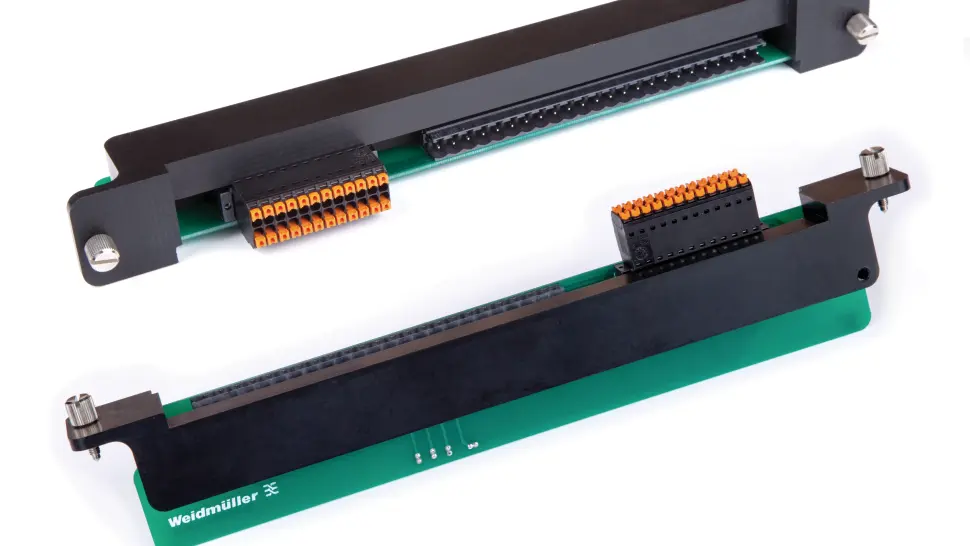

| 24-point IPC-620 carrier | 1 | 6720001226 |
| Note | Reference Honeywell Terminal Block 621-9954 | |
Connection data | ||
| Process side | Two SL 5.00 pitch headers to mate to legacyconnectors (2 x 19 points – 38 points total) | Two SL 5.00 pitch headers to mate to legacyconnectors (2 x 17 points – 34 points total) |
| Type | Screw type connection, OEM | Screw type connection, OEM |
| Control side | Two 5.08 pitch 20-point SL headers | Two 5.08 pitch 20-point SL headers |
| Type | Screw type connection | Screw type connection |
Rated data | ||
| Rated voltage | 125V max. | 125V max |
| Max. current per channel | 3.0A per point max. | 3.0A per point max. |
| 10 Amps per whole assembly | 10 Amps per whole assembly | |
| Operating temperature | 0°C to +50°C | 0°C to +50°C |
| Storage temperature | 0°C to +50°C | 0°C to +50°C |
Approvals | ||
| Standards | cURus (E141197) | cURus (E141197) |
| Physicals | Designed to fit in existing I/O rack | Designed to fit in existing I/O rack |
Note | Cabling not included | Cabling not included |
Ordering data | ||
| Model | Qty | Part No. |

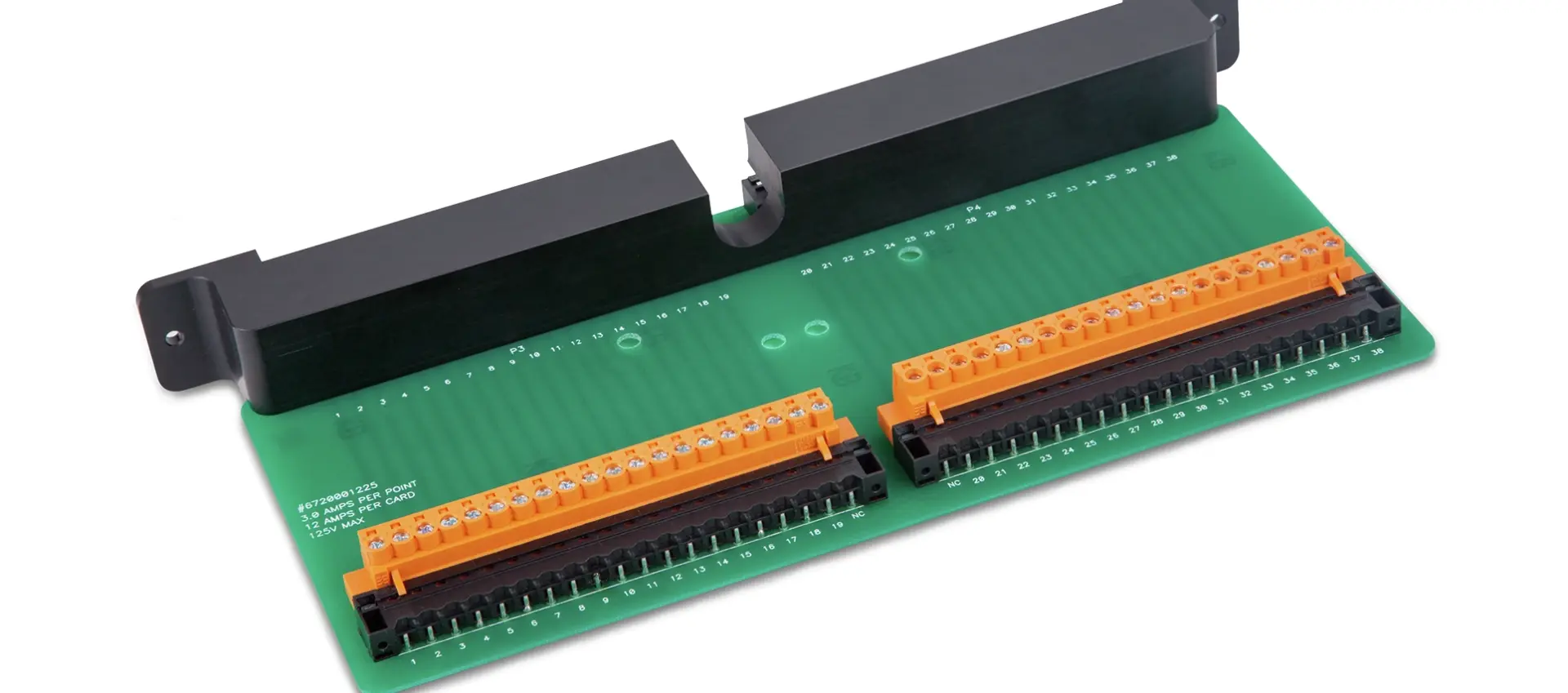

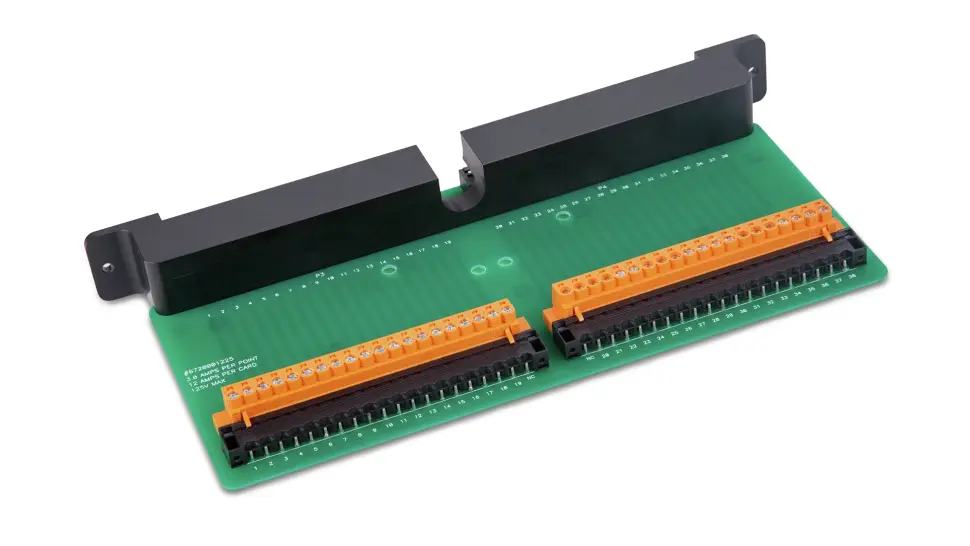

| 38-point IPC-620 carrier | 1 | 6720001225 |
| 34-point IPC-620 carrier | 1 | 6720001328 |
Note | Reference Honeywell Terminal Block 621-9977 or -9976 | Reference Honeywell Terminal Block621-9977 or -9976 |
