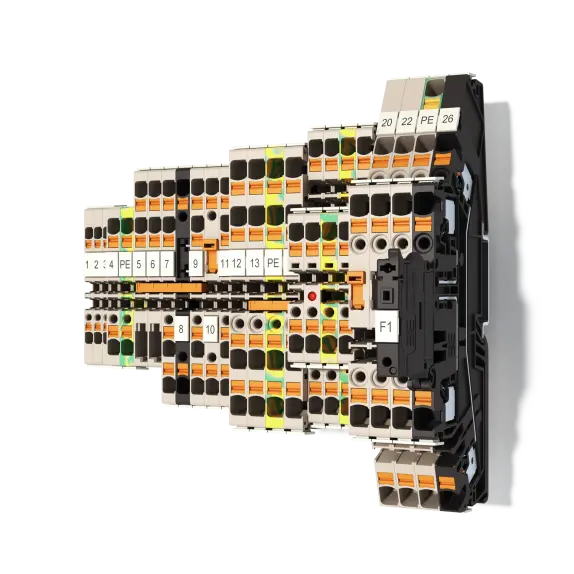

Klippon® Connect terminal blocks

Simple, fast and safe wiring of current and voltage transformers Product innovation

Klippon® Connect TTB Range for instrument transformer wiring

In T&D applications, current and voltage transformers are mainly used for protection and measurement functions. Our new TTB range of Klippon® Connect transformer terminal blocks have been designed to meet all the connection requirements of these two critical applications.

The wiring of current and voltage transformers can be carried out particularly easily and safely with the new terminal block series – even within complex circuits. The prevention of operating errors during operation increases plant availability and extends the life cycle of the entire switchgear. Thus, the respective requirements of the user are fulfilled to a high degree.

• Safe current and voltage transformer wiring with a single terminal block system

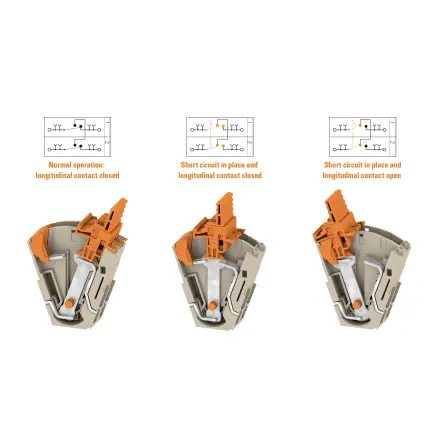

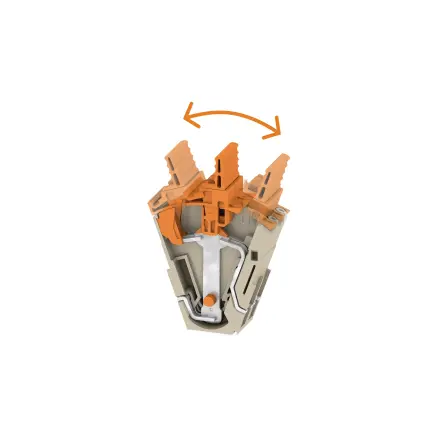

• Integrated single-stage forced short circuit mechanism for 100% safe handling
• Dedicated cross-connection channel before and after the disconnect contact for maximum flexibility
• Test sockets allowing adjoining fully insulated test plugs up to 10 mm diameter

Expansion of Klippon® Connect WPD - potential distribution terminal blocks

Klippon® Connect potential distribution blocks WPD 111 and WPD 113

The energy and zero potentials that are fed into machines and plants often need to be distributed even further to supply, for example, motors. Those extensions have to be as safe, efficient, and space-saving as possible.

WPD distribution blocks have a unique stair form and screw heads in an offset position. The latter ensure at every echelon level a safe and comfortable connection in systems and housings, even in confined spaces.

• Available in the colors grey, blue, red and black
• Self-extinguishing, halogen-free plastic housing
• High finger protection according to EN 50274
• Short circuit resistance according to high SCCR standard

Expansion of Klippon® Connect sub-distribution blocks

Klippon® Connect sub-distribution block WPD 110

Sub-distribution and locolised systems can be found not only in the building industry, but also in other industries such as mashinery. As the name suggests, the respective lines in different cross-sections must be collected and distributed within these switchgear.

Our expansion of the sub-distribution blocks with the WPD 110 variant enables the collection and distribution of wires with a cross-section of up to 70 mm². In combination with the WPD 100, the range of 1.5 - 70 mm² can be covered within the cabinet. The patented connection area also enables the flexible and simple use of aluminum conductors.

• Connection of aluminum conductors
• Self-extinguishing, halogen-free plastic housing
• Finger safe as per EN 50274
• Connection description with letters and numbers

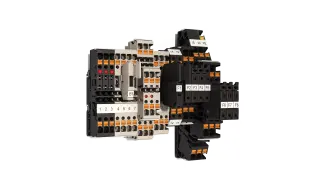

Solve electronic switching tasks individually and flexibly

Klippon® Connect A2T 2.5 EM terminal blocks with electronic components

In industrial control panels, the smallest electronic components often have to be integrated to protect sensitive electronics, to connect components, to visualise operating states, and much more. Furthermore, maximum flexibility is required for the individual design of circuits.

Our terminal blocks with integrated electronic components provide a space-saving way of integrating important functions into circuits. The standard portfolio includes terminals with integrated diodes, resistors, and LEDs. In addition, specific components can be selected and soldered into the terminal body. This allows Klippon® Connect terminals with PUSH IN technology to be used extremely flexibly for a wide range of switching tasks.

• Maximum flexibility due to designs with and without integrated electronic components
• Highest security for components against voltage peaks and overvoltage
• Multifunctional separation area for individual applications

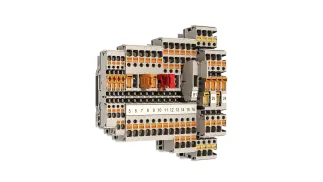

Separate potentials simply and safely in confined spaces

Klippon® Connect test-disconnect terminal blocks

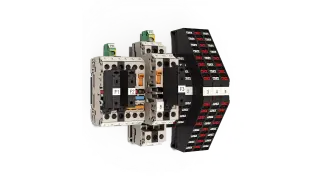

In marshalling cabinets of industrial control systems, signal lines from the field are often connected with terminal blocks. These are known as a robust, simple, and tidy connection option. However, their use requires sufficient current protection and a reliable disconnection circuit.

Our WDTR test-disconnect terminal blocks enable a safe and simple electrical isolation in confined spaces. Two potentials can be operated with only one terminal block, resulting in space-savings of 50%. The multifunctional disconnect section can be converted into a fuse terminal or equipped with a component plug to enable the integration of electronic components.

• Separation of two different potentials on one terminal block
• Maximum safety due to color-contrasted disconnect levers
• Combination foot for maximum flexibility on TS 32 and TS 35 mounting rails
• Multifunctional disconnect area for individual applications

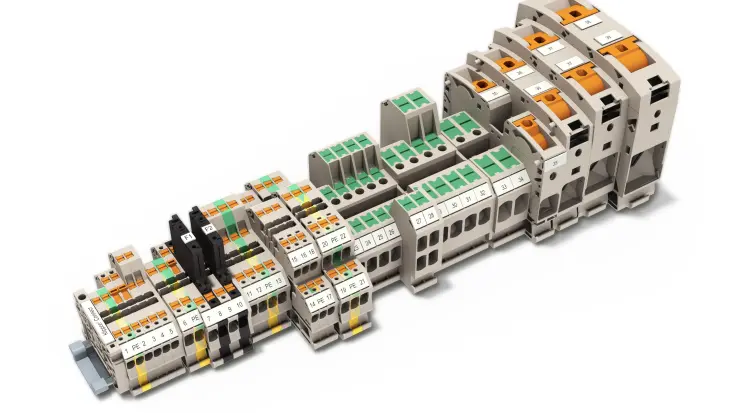

Klippon® Connect high current terminal blocks Product innovation

Increasing levels of automation call for more space in the control cabinet. With our feed-through terminal blocks A2C 50/70 and A2C 95/120 from the A-series these requirements will be achieved and additional a safe and efficient distribution of the electricity to the power consumers will be realized.

• Quick identification & selection of best fit
• Good visibility marking
• Standardized testing options
• Identification of external voltage
• Pre-aseembled blocks
• Innovative PUSH IN-Power connection

Klippon® Connect AWPD-Potential distribution terminal blocks Product innovation

Our AWPD modular terminal blocks for power distribution combine the advantages of clamping yoke and PUSH IN technology in one product. Power is supplied from the side of the terminal block using a reliable and proven screw connection with clamping yoke technology. The potential is distributed via space-saving PUSH IN connections on the top of the terminal block. This ensures fast, simple, and tool-free wiring even in confined spaces.

• Compatible with Klippon® Connect A-Series
• Standardized testing point
• Compact and robust design
• Distinct contact identification

WPD distribution blocks for potential distribution, new color version

Klippon® Connect A2T 2.5 EM terminal blocks with electronic components

The energy and zero potentials that are fed into machines and plants often need to be distributed even further to supply, for example, motors. Those extensions have to be as safe, efficient, and space-saving as possible. WPD distribution blocks have a unique echelon form and screw heads in an offset position. The latter ensure at every echelon level a safe and comfortable connection in systems and housings, even in confined spaces.

• Safe - up to 1.500V DC
• Space saving - save up to 40% space and safe components
• Powerful - Short circuit resistance according to high SCCR standard

Klippon® Connect for optimal control voltage distribution

Klippon® Connect sub-distribution block WPD 110

Klippon® Connect control voltage distribution terminal blocks AAP support the compact design of control voltage distribution and ensure effective control voltage of the equipment on the panel. The unique modular concept can be tailored to every type of machine. The potential distribution terminal blocks AAP are successful thanks to their uniform design with two possible constructions – alternating or grouped. Cross-connection options save space and avoid miswiring.

• Connection of aluminium conductors
• Quick fuse replacement by simply opening and releasing the fuse holder from the compound
• Colored pusher for potential discrimination in control current distributions from 0 to 800 V
• Two cross-connection channels for attachments and expansions
