Engineering & Assembly Services

Engineering and Consulting

Flexibly designed to suit your requirements

The Engineering team in Richmond, VA, is ready to work with you to review and optimize your design, prototype solutions and offer other engineering and consulting support. Our team consults with our customers to ensure their designs meet all applicable standards and certifications, suggest cost effective alternatives & optimize designs. With expertise in distributed control systems, hazardous location applications, automation and connectivity – Weidmuller USA is your resource for from planning to production. Contact us today at 800.849.9343.

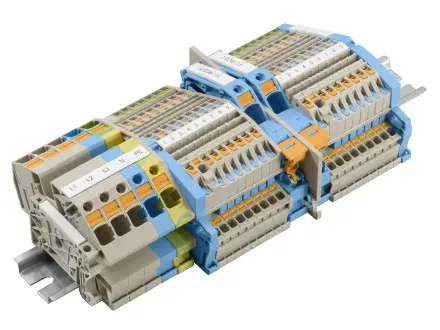

Custom Din Rail Assemblies

Individually assembled terminal rails

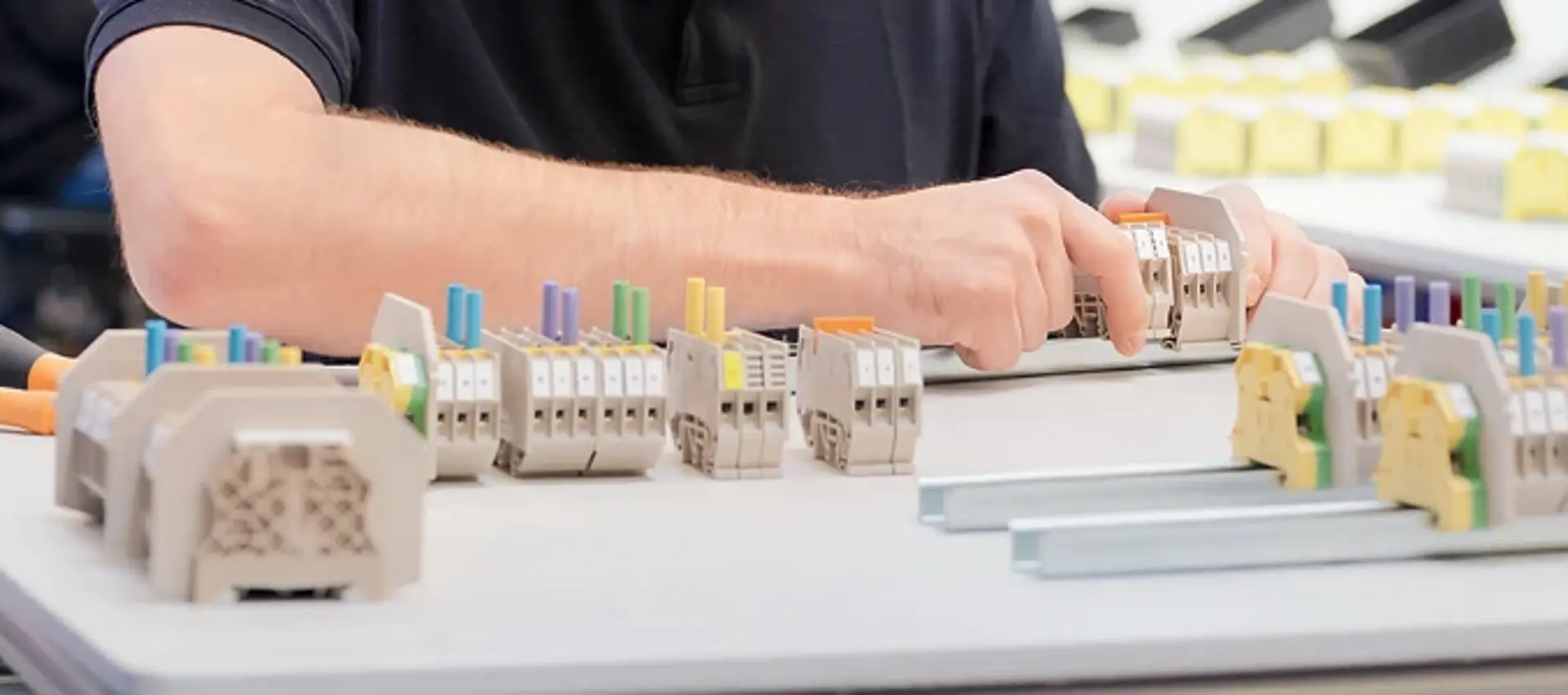

Optimize your efficiency and reduce production costs utilizing Weidmuller’s din rail assembly capabilities. Whether it is pre-assembled terminals, relays, surge suppression or power supplies on a din rail, or 3rd party components, our assembly team can meet your needs. Weidmullers’ din rail assembly production capabilities include din rail cutting, robotic tools for automated din rail assembly, robotic tooling for automated label marking, manual assembly and kitting.

more information

Modified and Assembled Enclosures

Your competitive advantage

Weidmuller offers the right combination of global certifications, application expertise, and industry know-how to develop the best solution for your application. We handle every aspect of the assembly process:

Hazardous location expertise
Class 1 Div 2 Zone 1, Zone 2, 21, 22 suitability
UL, cULus, IECEx, ATEX certifications
Global country certifications
Certification documentation
Initial design specifications/consulting
Assembly and installation of components
Umbrella assembly certifications for 3rd-party component installation
Adding mounting plates, holes or knockouts for cable glands

More information

Weidmuller Configurator

Our simple and seamless planning tool for electrical designers.

The Weidmuller Configurator is a software solution for selecting, configuring, and ordering terminal rails and terminal rail components from the Weidmüller range as well as modified and assembled enclosures including hazardous location applications. The tool supports continuous engineering workflows, from planning with AutoCAD, Solidworks, ePlan, e3, Zuken or E-CAD systems through to documentation. Create your configuration from over 12,000 Weidmüller products with extensive support. Get a quote in under 10 minutes.

Utilize our award-winning Weidmuller Configurator software tool along with Weidmuller’s Engineering and Assembly team to create products that meet applicable standards and certifications and achieve optimized designs at greater speed.

Download WMC now and get started selecting, configuring and ordering today!

Download Software

Fast Delivery Service

Get your quote in minutes and select rail assemblies in 10 days

And don’t forget about our Fast Delivery Service for tight deadlines. The Fast Delivery Service (FDS) simplifies your planning, accelerates your production processes and guarantees the delivery of individually assembled and ready-to-install terminal rails, and populated enclosures. Get a quote in minutes. We guarantee to ship in 10 days or less on assemblies comprised of our 600 top selling components.

More information

Fully Automated RailAssembler and RailLaser

First automated cabinet assembly and marking system in the U.S.

Faster, More Efficient Way to Assemble and Mark Terminal Blocks
Weidmuller is the pioneer in fully automated DIN rail assembly and marking. Using our Weidmuller Configurator (WMC) software, you can select, configure, and order customized terminal rails at our Richmond, Va. location. With our new RailAssembler and RailLaser, you can:

Experience up to 90 % time saving in terminal block assembly
Achieve easy handling due to universal magazines with high capacity
Take engineering data from the Weidmuller Configurator (WMC) to produce repeatable and accurate rail assemblies.

find out more

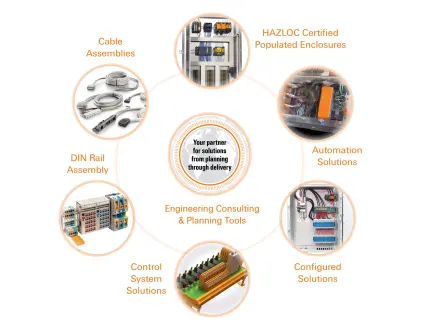

Other customized products

Custom Cable Assemblies

We can help you master your cabling workload!

Machine and system cabling is becoming an increasingly complex task. The assembly of individual cables leads to high costs in planning, procurement, and assembly. We provide custom designs and products for continuous connectivity from IP20 to IP6x - reliable, tested, and from a single source.

Continuous connectivity from IP20 to IP6x
Reduce installation costs to a minimum
Demand-oriented cable lengths, plugs, markings, or colors

More information

Why Plug-and-Play PLC Migration is ROI Gold

Update your PLCs quickly, easily and without errors

Weidmuller’s MiBridge solution– which features plug-and-play technology – gives end users and integrators a better way to migrate to new PLCs without a comprehensive replacement.

Terminal blocks with electronic components

Diode terminal block, resistor terminal block, thermocouple terminal or thermocouple terminal block as thermovoltage terminal pair, LED terminal block and electronics terminal block with potentiometer or for the integration of varistors
