Connection data | ||
| Original Field Wire Adapter | Card edge connection to Weidmüller adapter | |
| Weidmüller Migration Adapter | 3.50 pitch S2CD - THR headers Four B2CF plugs with Push-In connection (Part No. 1277890000) | |
Rated data | ||
| Rated voltage | 125V AC / 125V DC max. | |
| Max. current per channel | 4A per point max. | |
| 32A per whole assembly | ||
| Operating temperature | -20°C to 50°C 0°C to 50°C (UL) | |
| Storage temperature | -30°C to +70°C | |
Approvals | ||
| Standards | cURus (E141197) | |
| Physicals | Designed to fit in existing I/O chassis | |
| Note | Cabling not included | |
Ordering data | ||
| Model | Qty | Part No. |

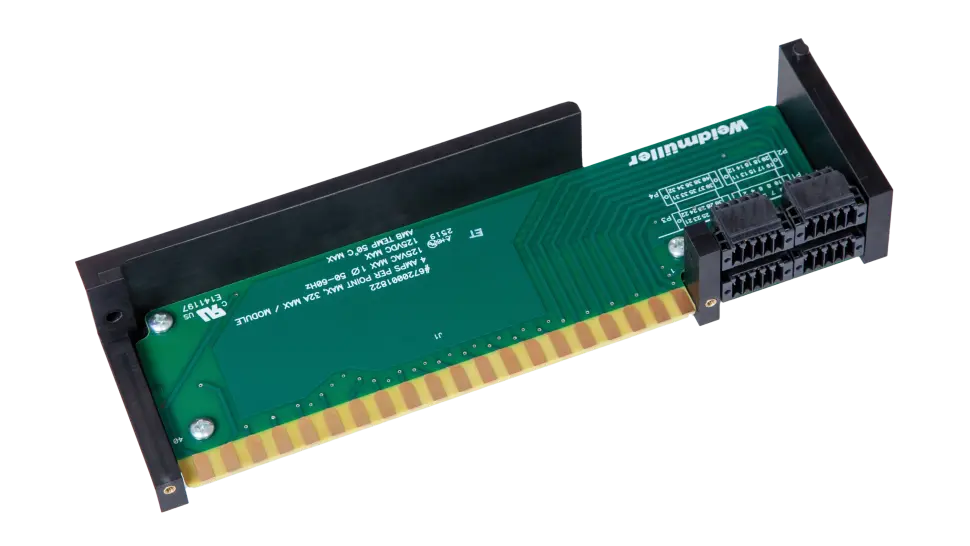

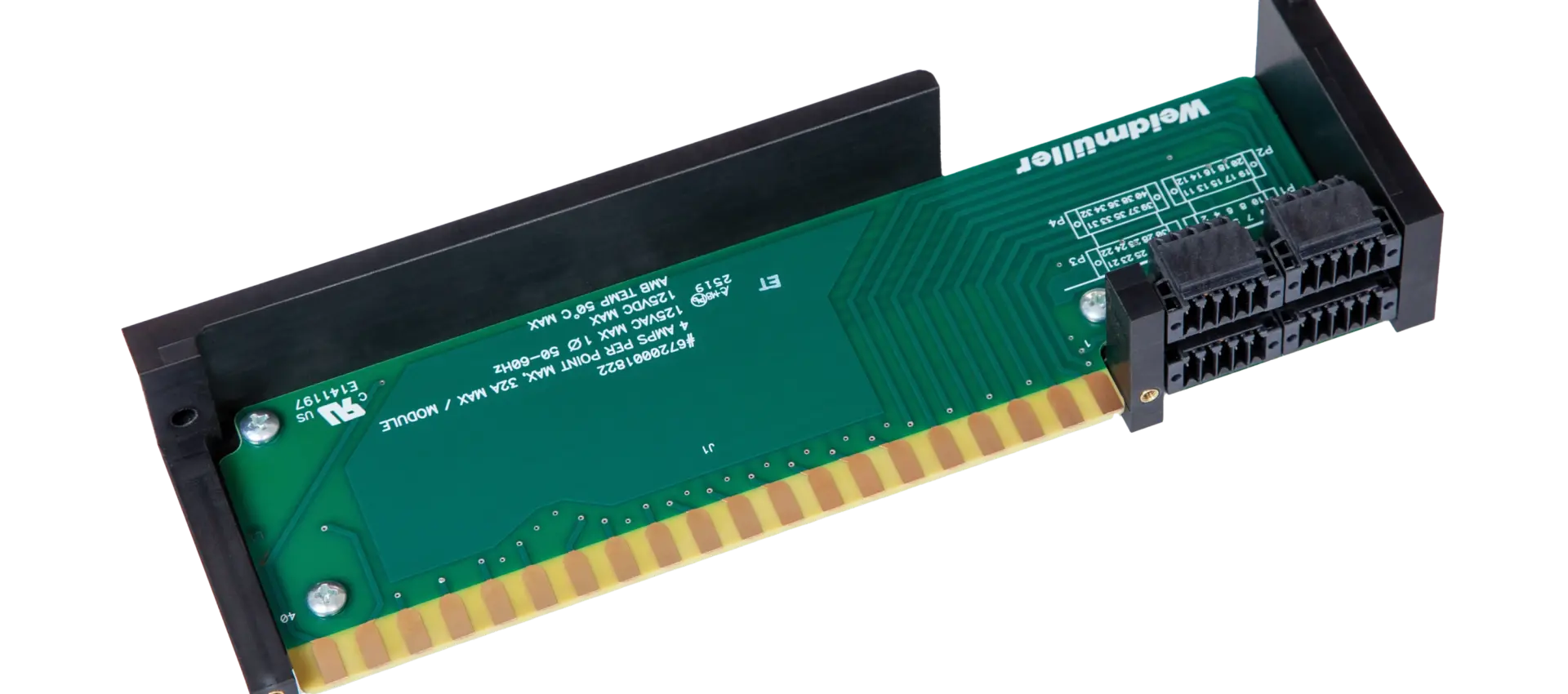

| 40-point Modicon Quantum | 1 | 6720001822 |
