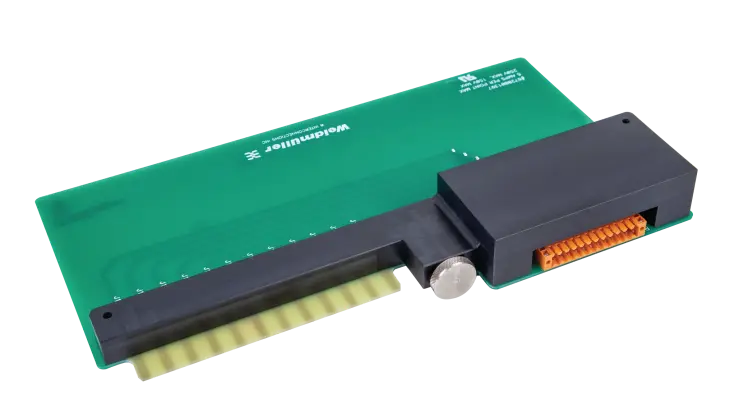

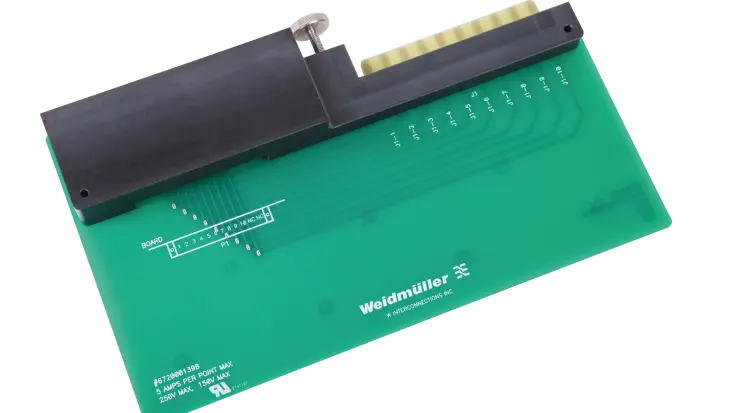

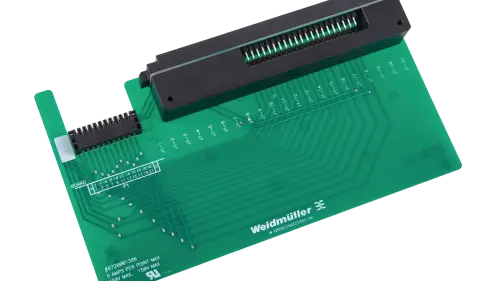

| Connection Data | 10-point PLC5 1771-WA/WC carrier | 12-point PLC5 1771-WB/WD carrier |
| Original Field Wire Adapter | Card edge connection to Weidmüller adapter | Card edge connection to Weidmüller adapter |
| Type | OEM connector | OEM connector |
| Control side | One 3.5 pitch 12-point SL connector | One 3.5 pitch 12-point SL connector |
| Type | Screw type connection | Screw type connection |
Rated data | ||
| Rated voltage | 250V max., 150V max. (UR) | 250V max., 150V max. (UR) |
| Max. current per channel | 5A | 5A |
| Operating temperature | 0°C to +50°C | 0°C to +50°C |
| Storage temperature | 0°C to +50°C | 0°C to +50°C |
Approvals | ||
| Standards | cURus (E141197) | cURus (E141197) |
| Physicals | Designed to fit in existing I/O rack | Designed to fit in existing I/O rack |
| Note | Cabling not included | Cabling not included |
Ordering data | ||
| Part Number | 6720001398 | 6720001397 |

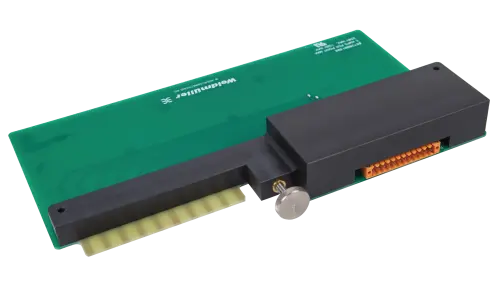

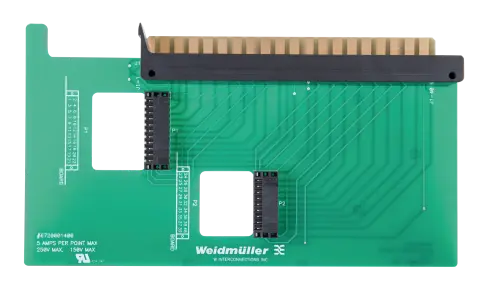

| Connection data | 18-point PLC 5 1771-WI carrier | 21-point PLC 5 1771-WG carrier 21-point PLC 5 1771-WH/WHF/WHFB carrier | 40-point PLC 5 1771-WN carrier |
| Original Field Wire Adapter | Card edge connection to Weidmüller adapter | Card edge connection to Weidmüller adapter | Card edge connection to Weidmüller adapter |
| Type | OEM Connector | OEM Connector | OEM Connector |
| Control side | One 3.5 pitch 22-point S2L header | One 3.5 pitch 22-point S2L header | One 3.5 pitch 18pin + 22-point S2L header |
| Type | Tension type connection | Tension type connection | Tension type connection |
Rated data | |||
| Rated voltage | 150V max. | 120/240V max. 1Ø3W+G, 50-60Hz | 250V max., 150V max. (UR) |
| Max. current per channel | 5.0A per point max. | 3A per point max. | 5.0A per point max. |
| 10 Amps per whole assembly | 16 Amps per whole assembly | 10 Amps per whole assembly | |
| Operating temperature | 0°C to +50°C | 0°C to +50°C | 0°C to +50°C |
| Storage temperature | 0°C to +50°C | 0°C to +50°C | 0°C to +50°C |
Approvals | |||
| Standards | cURus (E141197) | cURus (E141197), CE | cURus (E141197) |
| Physicals | Designed to fit in existing I/O rack | Designed to fit in existing I/O rack | Designed to fit in existing I/O rack |
Note | Cabling not included | Cabling not included | Cabling not included |
| Ordering Data | |||
| Part Number | 6720001399 | 7940125466 1771—WG 7940125460 1771WH/WHF/WHFB | 6720001400 |
