Moore APACS Migration

Moore APACS Migration

Benefits:

  • Keep your existing field terminations landed. No ring out needed!
  • Perform your DCS conversion in hours instead of weeks.
  • All components are plug-and-play with color coded connectors to eliminate any chance of wiring errors.

To Technical Data

Step-by-Step Instructions

Please click on the images below to view the migration steps.

Start

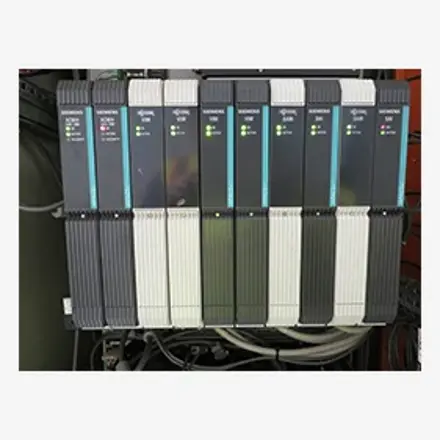

Existing Siemens Moore APACS system

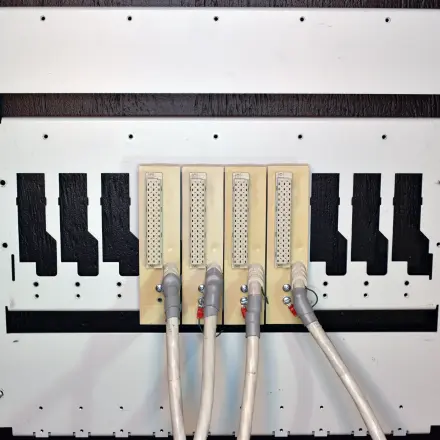

Step 1

Remove all parts from Modulrac (I/O module, metal frame and MBUS Board) leaving only I/O connectors

Step 2

Install Adapter rack

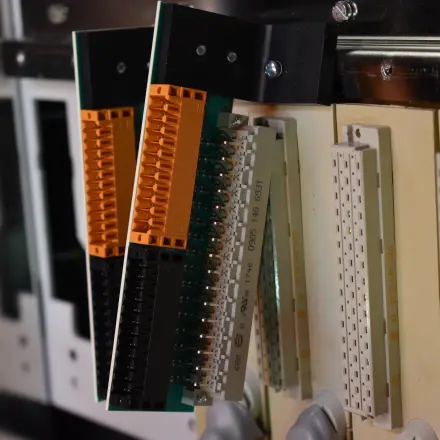

Step 3

Install the Weidmüller Adapters

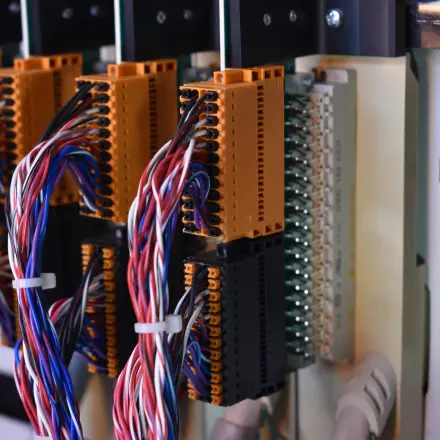

Step 4

Connect cable with connector to Weidmüller Adapters

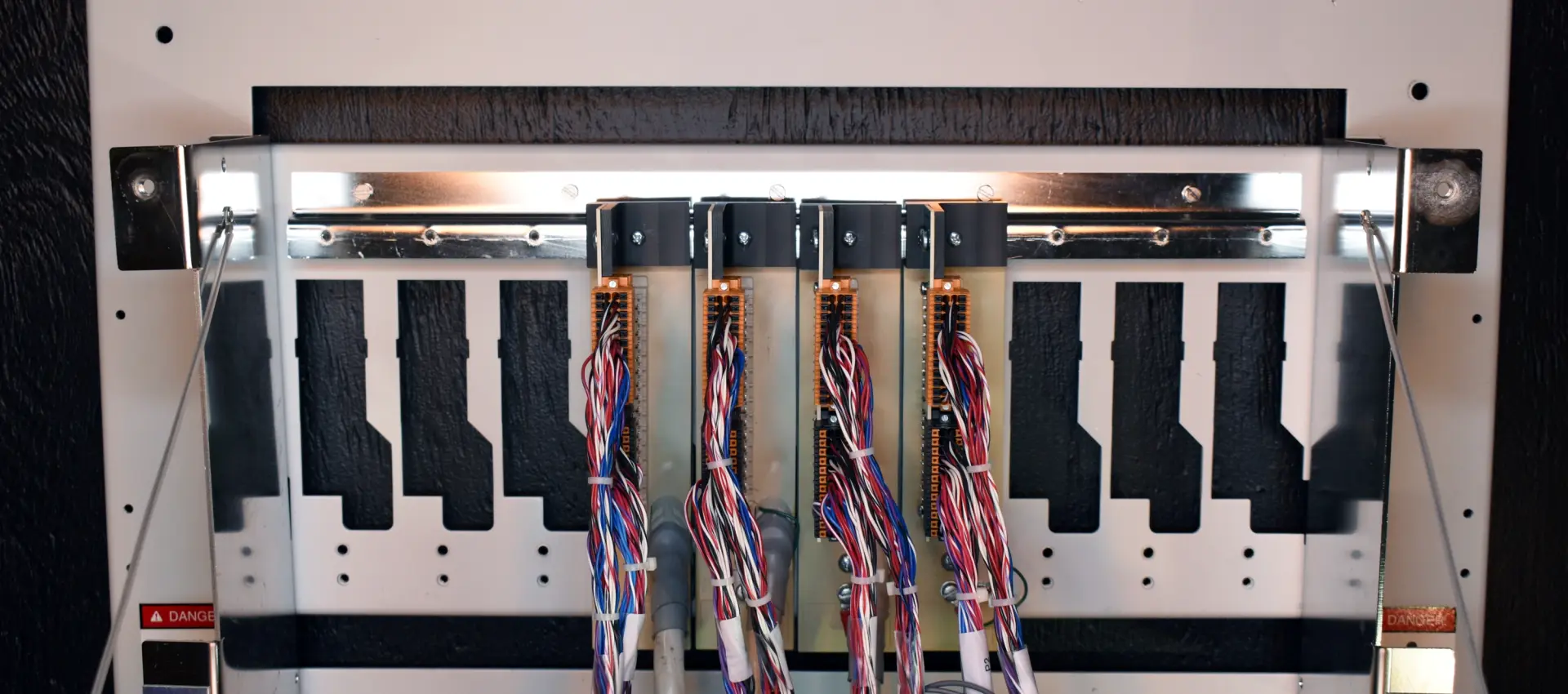

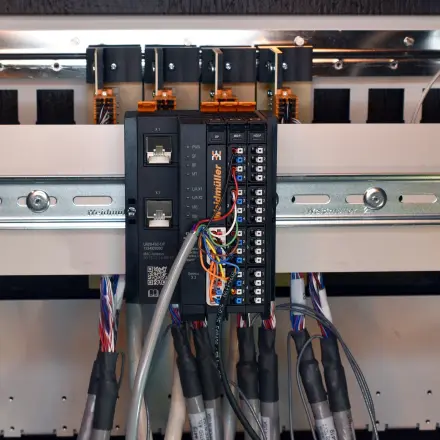

Step 5

Connect other side of cable to new system

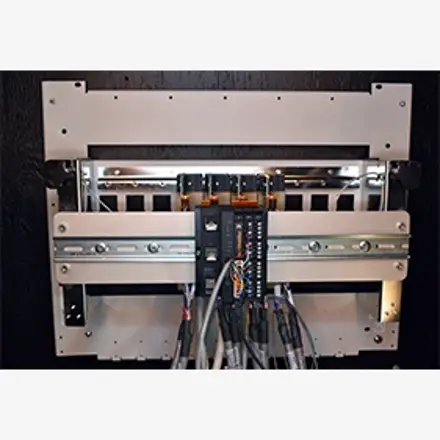

Finished

Completed and migrated DCS system
