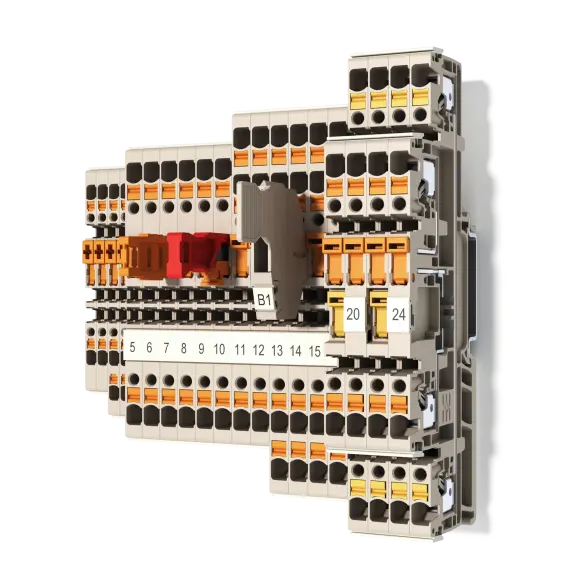

Disconnect terminal blocks and test disconnect terminal blocks

Terminal blocks with disconnect function for measurements in control cabinets

Tests and measurements of separate circuits within electrical switchgear and electrical installations are subject to standardized requirements under DIN or DIN VDE. Test disconnect terminal blocks and neutral disconnect terminal blocks (N-disconnect terminals) are used to safely disconnect a circuit on a terminal without disconnecting the connected conductor for this purpose.

Various designs and versions (color, type of connection, cross-section) of the terminals enable the circuit to be separated or contacted to the 10x3 electrical busbar or N busbar, for example, for an insulation resistance measurement, which is required by VDE in public facilities. The disconnect lever, slider, or N-slider can be opened or closed easily and safely with a screwdriver.

Product range

Our product range of test-disconnect terminal blocks

PUSH IN technology

Thanks to the extensive range of accessories and the various cross-connection options, you can solve any requirement perfectly with our test-disconnect terminal blocks and N-disconnect terminal blocks (blue) in PUSH IN connection technology.

Go to product catalog

Tension clamp connection

The test-disconnect terminal blocks or neutral disconnect terminal blocks with proven tension clamp technology are suitable for particularly compact but nevertheless clearly arranged control cabinet building. Its incredibly high degree of flexibility makes the tension clamp an excellent connection alternative for the electrical connection of flexible and solid wires.

Go to product catalog

Screw connection

The high reliability and wide range of test-disconnect terminal blocks and neutral wire disconnect terminal blocks with clamping yoke connection technology provide relief in planning and maximum safety in operation with and without wire end ferrules.

Go to product catalog

New products for disconnect terminal blocks and neutral disconnect terminal blocks

Klippon® Connect test-disconnect and fuse terminal blocks A2T 4 FS and A2T 4 DT

The number of sensors and actuators in the field is growing. More and more potentials have to be wired, fused, or even separated in the control cabinet. One example is servomotors with the potentials plus, minus, or PE. They require clear wiring, including fused potential.

The new two-tier terminals of the A2T 4 FS and A2T 4 DT series combine up to three functions per terminal. For example, you can choose from “Disconnect, feed-through, PE” or “Fuse, feed-through, PE.” Sensors and actuators can be wired conveniently and clearly on just one terminal block. The potentials can be fused or disconnected. Cross-connection channels on each level ensure safe potential distribution on the terminal strip.

Klippon® Connect test-disconnect and fuse terminal blocks A2T 4 FS and A2T 4 DT

Three potentials on only one terminal - PE, feed-through and fuse or PE, feed-through and disconnect
Test voltage tap / test possibility on each level
Multifunctional separation area for individual applications

Go to product catalog

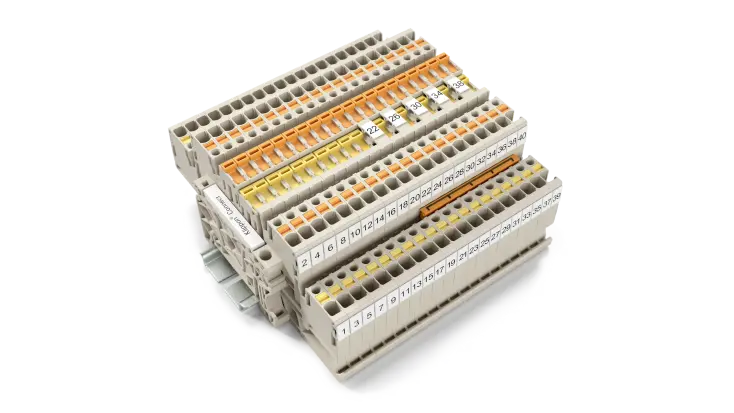

Separate potentials simply and safely in confined spaces

In marshaling cabinets in industrial control systems, signal lines from the field are often connected with terminal blocks. These are known as a robust, simple, and tidy connection option. However, using them requires sufficient current protection and a reliable disconnection circuit.

Our A2T 2.5 DT/DT test-disconnect terminal blocks enable safe and simple electrical isolation in confined spaces. Two potentials can be operated with only one terminal block, resulting in space savings of 50%. The multifunctional disconnect section can be converted into a fuse terminal or equipped with a component plug to enable the integration of electronic components.

Separate potentials simply and safely in confined spaces

Separation of two different potentials on one terminal block
Test voltage tap / test possibility on each level
Multifunctional separation area for individual applications

Go to product catalog

Separate potentials simply and safely in confined spaces

In marshaling cabinets in industrial control systems, signal lines from the field are often connected with terminal blocks. These are known as a robust, simple, and tidy connection option. However, using them requires sufficient current protection and a reliable disconnection circuit.

Our WDTR test-disconnect terminal blocks enable safe and simple electrical isolation in confined spaces. Two potentials can be operated with only one terminal block, resulting in space savings of 50%. The multifunctional disconnect section can be converted into a fuse terminal or equipped with a component plug to enable the integration of electronic components.

Separation of two different potentials on one terminal block
Combination foot for maximum flexibility on TS 32 and TS 35 mounting rails
Multifunctional separation area for individual applications

Go to product catalog

Download for our disconnect terminal blocks

On the website Engineering Data you will find an extensive selection of downloads related to CAT data. A wide range of digital product data is available for engineering systems such as EPLAN (EPLAN Electric P8 and EPLAN Pro Panel), Zuken E3.series, WSCAD, and many others to help you quickly integrate our products into your design. This data allows for precise representation of disconnect terminal blocks, test disconnect terminal blocks or also N-wire disconnect terminal blocks (blue) in 3D and show all relevant electrotechnical and business characteristics.
