HDC SNAP IN Kits

Ready to Order? Visit Our Eshop!

Our RockStar® heavy duty connector inserts with SNAP IN
technology provide an easy, safe, and vibration-proof connection.

Kits include the following components:

Female SNAP IN insert
Male SNAP IN insert
Hood (plug housing)
Bulkhead
Cable glands

Order on Eshop

Metric Kits

HDC KIT HE-QT 06.101 M

Order number: 8000134354

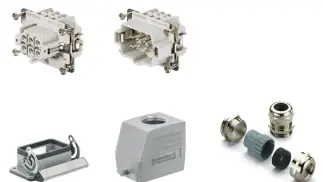

6 Pole, 500V/24A, M20 Top Entry (Size 3)

HDC KIT HE-QT 06.100 M

Order number: 8000134353

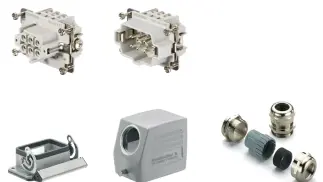

6 Pole, 500V/24A, M20 Side Entry, (Size 3)

HDC KIT HE-QT 10.110 M

Order number: 8000134355

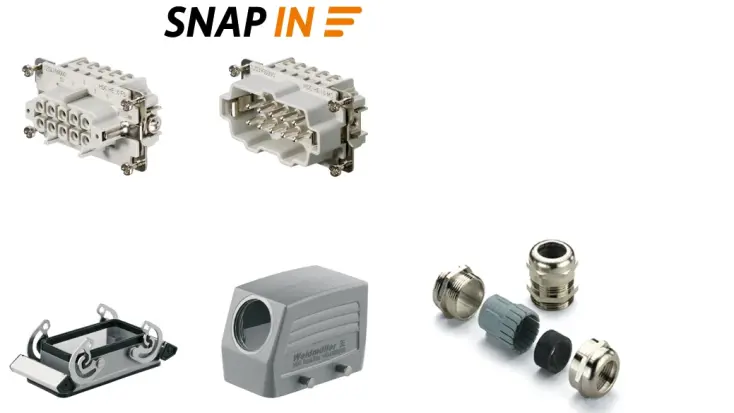

10 Pole, 500V/16A, M25 Side Entry (Size 4)

HDC KIT HE-QT 10.111 M

Order number: 8000134356

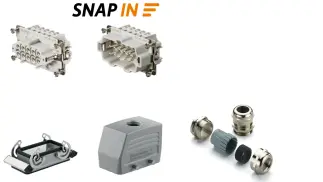

10 Pole, 500V/16A, M25 Top Entry (Size 4)

HDC KIT HE-QT 16.120 M

Order number: 8000134358

16 Pole, 500V/16A, M25 Side Entry (Size 6)

HDC KIT HE-QT 16.121 M

Order number: 8000134357

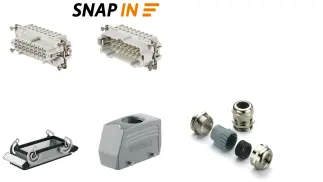

16 Pole, 500V/16A, M25 Top Entry (Size 6)

HDC KIT HE-QT 24.130 M

Order number: 8000134359

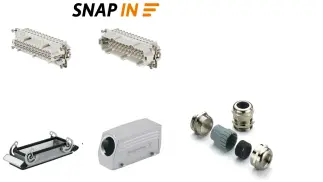

24 Pole, 500V/16A, M32 Side Entry (Size 8)

HDC KIT HE-QT 24.131 M

Order number: 8000135362

24 Pole, 500V/16A, M32 Top Entry (Size 8)

PG Kits

HDC KIT HE-QT 06.100

Order number: 8000151872

6 Pole, 500V/24A, PG16 Side Entry (Size 3)

HDC KIT HE-QT 06.101

Order number: 8000151873

6 Pole, 500V/24A, PG16 Top Entry (Size 3)

HDC KIT HE-QT 10.110

8000151874

10 Pole, 500V/16A, PG16 Side Entry (Size 4)

HDC KIT HE-QT 10.111

Order number: 8000151875

10 Pole, 500V/16A, PG16 Top Entry (Size 4)

HDC KIT HE-QT 16.120

Order number: 8000151876

16 Pole, 500V/16A, PG21 Side Entry (Size 6)

HDC KIT HE-QT 16.121

Order number: 8000151877

16 Pole, 500V/16A, PG21 Top Entry (Size 6)

HDC KIT HE-QT 24.130

Order number: 8000151878

24 Pole, 500V/16A, PG21 Side Entry (Size 8)

HDC KIT HE-QT 24.131

Order number: 8000151879

24 Pole, 500V/16A, PG21 Top Entry (Size 8)

Downloads

Download: Heavy Duty Connectors SNAP IN Kits — Explore Weidmuller RockStar heavy duty connector kits with SNAP IN technology for tool-free wiring in industrial applications. This flyer highlights preassembled kits with IP65 aluminum housings, vibration-resistant connections up to 600 V and 15 A, and spring-loaded contacts that secure wires with an audible click for fast, reliable installation.

Flyer - LIT2107
Heavy Duty Connectors SNAP IN Kits

238.0 KB

Download: HDC Kits Product Overview — Discover Weidmuller RockStar heavy duty connector kits for industrial connectivity, including SNAP IN, PUSH IN, and screw connection options. This brochure details configurable kits with up to 24 poles, IP65 protection, diecast aluminum housings, and ratings up to 600 V AC/DC, helping simplify selection and deployment for control cabinet and field wiring applications.

Brochure - LIT2109
HDC Kits Product Overview

2.0 MB
