Complete Enclosure Solutions

Fully populated and protected wireless-in-a-box solutions.

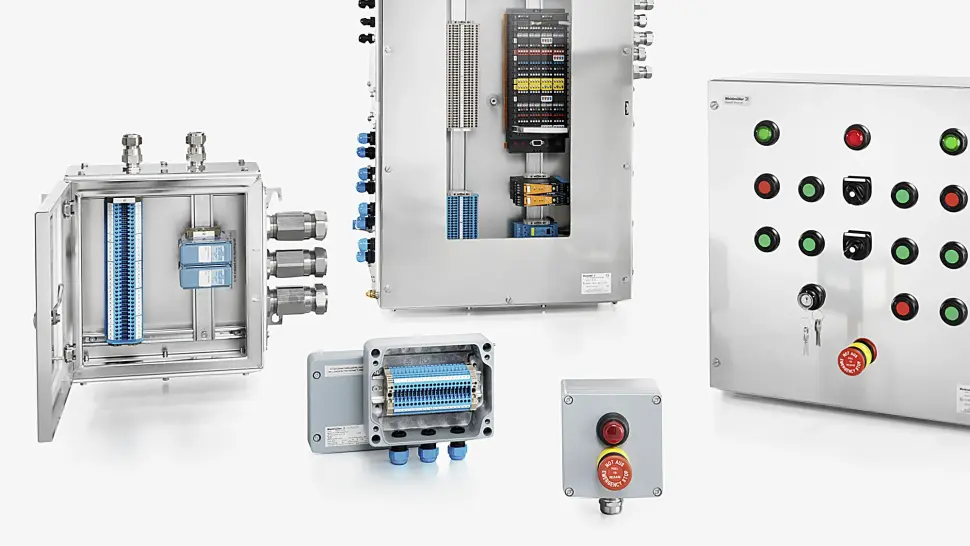

Complete Enclosure Solutions

At Weidmuller, we have the resources and capabilities to design and build both industrial and ATEX certified enclosures. We handle every aspect of the process:

  • Initial design specifications
  • Assembly and installation of box elements
  • Design and specification of DIN-rail modules
  • Terminal wiring
  • Specifying, ordering and integrating third-party products
  • Application of special coatings
  • Adding elements such as mounting plates and holes or knockouts for cable glands
  • Providing full ATEX certification and documentation

Pre-assembled Solutions

Pre-assembled Solutions

Weidmuller is pleased to offer three pre-configured and assembled Wireless Enclosure Solutions. These three wireless enclosures feature plastic or metal enclosures with either Wireless Ethernet Modems or Radio Frequency (RF) Transmitters/Receivers. Just connect power and your signals and you are wireless!

The Ethernet solution is available in both a stainless steel or plastic enclosure and features a Weidmuller wireless Ethernet (WiFi) 2.4Ghz modem, which can function as an access point, bridge, client or router. In addition to the modem technology, the enclosure comes complete with the following components: power supply, circuit protection, surge protection, terminal blocks, ground blocks, antenna, antenna connection cables and through panel cable glands. This complete, preassembled solution provides all the necessary elements for a remote Wireless Ethernet installation.

Wireless Ethernet Enclosure – Stainless Steel Solution

Wireless Ethernet Enclosure – Stainless Steel Solution

Features:

  • NEMA4X Stainless Steel Enclosure
  • 2.4GHz (WiFi) Wireless Ethernet modem
  • Operate as a Client/Bridge/Access Point/Router with a 400mW transmit power
  • Built in Security/Encryption including AES and WEP with matching antenna and all cabling
  • Assembled, wired and tested!
  • Surge protection included
  • Transmit range up to 3 miles with appropriate antenna
  • Data transmission rates up to 54Mbps

Type

Description

Part Number

SP-Wireless 2.4GHz Ethernet Stainless BoxWireless Ethernet Enclosure – Stainless Steel Solution6760004616

Wireless Ethernet Enclosure - Plastic Solution

Wireless Ethernet Enclosure - Plastic Solution

Features:

  • NEMA 4X Plastic Enclosure
  • 2.4GHz (WiFi) Wireless Ethernet modem
  • Operate as a Client/Bridge/Access Point/Router with a 400mW transmit power
  • Built in Security/Encryption including AES and WEP with matching antenna and all cabling
  • Assembled, wired and tested
  • Surge protection included
  • Transmit range up to 3 miles with appropriate antenna
  • Data transmission rates up to 54Mbps

Type

Description

Part Number

SP-Wireless 2.4GHz Ethernet Plastic BoxWireless Ethernet Enclosure – Plastic Solution6760004617

The I/O version is comprised of two preassembled plastic enclosures. Each enclosure contains a power supply, circuit protection, surge protection, antenna, antenna connection cables and terminal blocks.

In addition to these components, one enclosure houses a transmitter and the second enclosure houses a receiver. The transmitter and receiver operate on 900Mhz radio bands and are preconfigured to send and receive multiple I/O signals. The I/O solution can transmit and receive two digital signals and one analog signal over a range of several miles. This self-contained solution is designed for quick and easy set-up. The pre-installed terminals make I/O and power connections fast and easy, for “out of the box” operation.

Wireless I/O 900MHz - Plastic Solution

Wireless I/O 900MHz - Plastic Solution

Features:

  • Two pre-assembled NEMA4x Plastic Enclosures and Full IP67 Ingress protection
  • 900MHz (Frequency Hopping) Transmitter and Receiver with a 1W transmit power
  • Preconfigured and mapped I/O with matching antenna and all cabling
  • Surge protection included
  • Cable glands included for signal and power access
  • Assembled, wired and tested
  • Transmit range up to 20 miles with appropriate antenna
  • Transmitter accepts up to 1 analog and 2 digital intputs
  • Receiver accepts up to 1 analog and 2 digital outputs

Type

Description

Part Number

SP-Wireless Transmitter/Receiver ComboWireless I/O 900MHz - Plastic Solution6760004618
