Cellular Routers

Maximum Security with Industrial Ethernet Routers

Communication networks used for office applications and for automation are converging. The advantages that result from this process are put into practice more and more frequently because they make procedures more transparent and facilitate data exchange substantially. Weidmuller’s Industrial Ethernet Router ensures that different networks interoperate in unison and with top-level security.

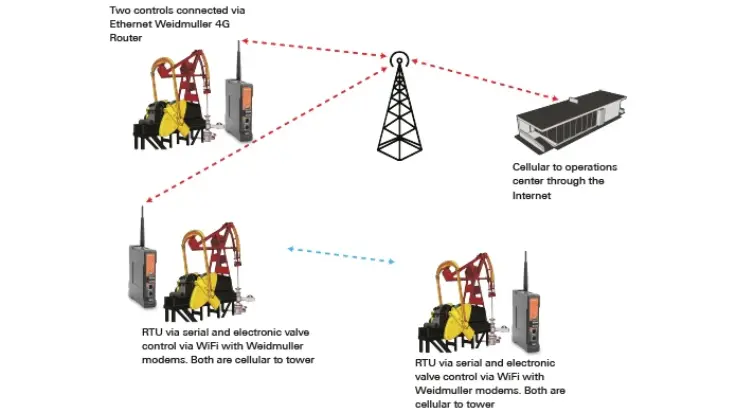

Typical Applications:

Networking Wind Turbines and Solar Collectors
Electricity Network Control
Tank Farm Monitoring
Water Distribution Network
Environmental Monitoring

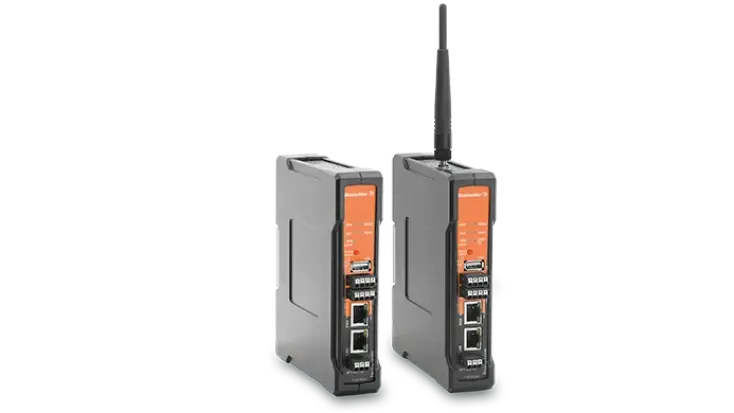

Gigabit Industrial Security Router

The Gigabit Security Router by Weidmüller has been developed specifically for industrial networks and offers secure, reliable communication between Ethernet-based machines and systems as well as higher-level networks.

Features

2 Gigabit ports (LAN/WAN)
Integrated firewall
NAT masquerading, 1:1 network mapping and port forwarding
Remote access via VPN (OpenVPN, IPsec, L2TP)
Key switch function for activation/deactivation of WAN/VPN connection
Variant with integrated 3G/UMTS modem for rapid, Internet-based wireless access
Back-up and recovery of device configuration using SIM card
Full Layer 2/3 Router

Availability

Type	Description		Temperature Range		Part Number
IE-SR-2GT-UMTS/3G	LAN / WAN router with integrated UMTS / HSPA+ modem		-20° to +70°C		1345250000

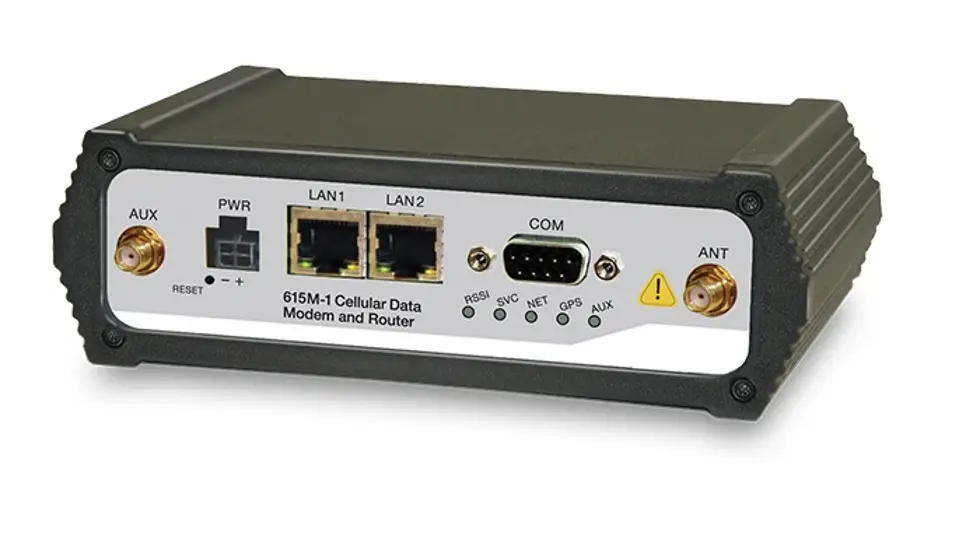

Multi-Service Provider Cellular Modem and Router

The 615M-1 is a powerful Multi-Service Provider Cellular Broadband Router that delivers wireless data connectivity for up to two LAN connections and one serial port through public cellular networks at 3G network speeds. UMTS technology leverages high-speed HSPA to provide data access at speeds up to 14.4Mbps with backward compatibility to GSM’s EDGE and GPRS. CDMA technology leverages high-speed EV-DO Rev A to provide data access at speeds up to 3.1Mbps with backward compatibility to EV-DO Rev 0 and CDMA 1 x RTT.

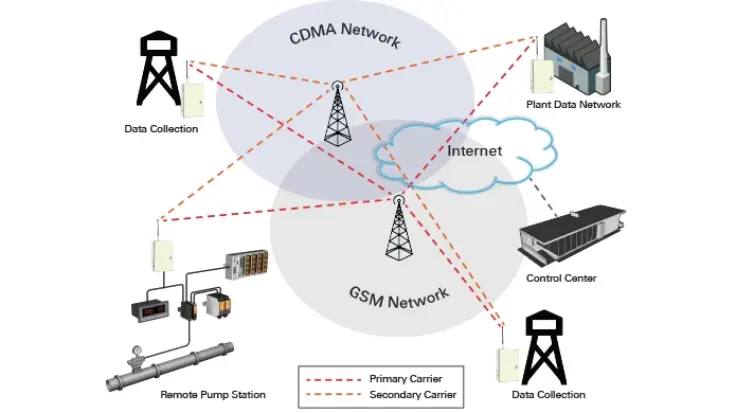

It provides real-time redundancy between Carriers in case of a network failure, reliable connectivity for Programmable Logic Controllers (PLC’s), Remote Terminal Units (RTUs), Ethernet web cameras or any other Ethernet connectivity device. The router features an integrated DHCP server, port forwarding and port mapping capabilities.
