Mesh I/O Systems

Ideal for large I/O applications. Two-way, peer-to-peer communications...

Mesh I/O Systems

Wireless I/O

Wireless I/O, also known as radio telemetry, connect directly to sensor and control signals, and transmit the signal values by radio. The signals are either re-created as similar signals, or output as a data connection — Ethernet, Profibus, Modbus etc. Wireless I/O networks can be as simple as two units transferring a small number of signals from one point to another, or they can be complex data-acquisition networks with multiple “control” interfaces to external systems.

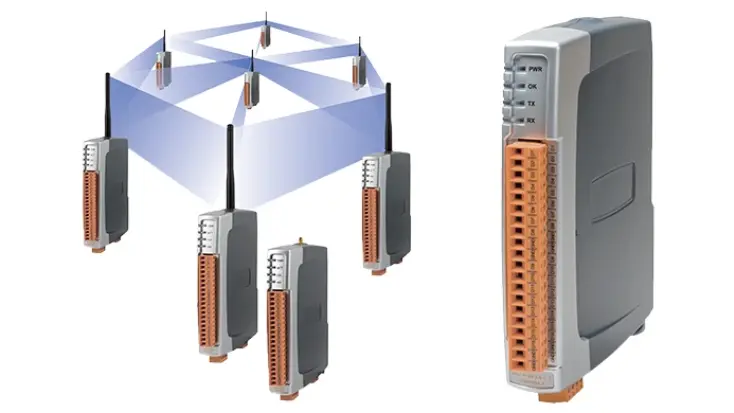

Mesh I/O Systems

Weidmuller’ s innovative configuration technology combines the reliability of 400Mhz, 868Mhz & 900MHz, FHSS modulation with mesh architecture to automatically detect and route the most efficient path to the destination node.

The high power 1W receiver sensitivity combined with frequency hopping and IP-based addressing provides reliable, self-healing, encrypted communications up to 140kbps.

The 900MHz & 868MHz Unlicensed Frequency Hopping wireless transceiver supports over the-air Ethernet protocols which gives the WI-I/O-9-U3 the power and flexibility to perform reliably in sprawling harsh industrial environments.

Secure AES encryption, advanced IP filtering, multilevel authentication, user access and change event logging features provide the user with the tools to ensure the highest level of data integrity and protection against malicious attacks.

Flexible native Ethernet support provides solutions to connectivity challenges today and in the future. The WI-I/O-9-U3 also provides Ethernet and serial gateway support for industrial protocols including Modbus TCP/RTU and DNP3 I/O, MQTT +Sparkplug B. ProMesh™ operates reliably with the challenges of obstructed paths by using automatic path selection to allow the communications network to adapt to changes easily with redundancy.

Mesh I/O Systems
WI-I/O-9-U3
  • IP-based addressing has the unique ability to MESH between I/O radios for automatic network healing and reliable data communications
  • Unlimited number of repeater hops in one system
  • On board multi-I/O channels for two way communications
  • Frequency Hopping 902-928 MHz 1W license-free USA/Canada
  • Unrivaled scalability allowing for thousands if I/O points in one system
  • Automatic connection of up to 31 I/O expansion modules (WI-I/O-EX-I-S-XX) per wireless unit
  • Simple software upgrade to Ethernet TCP/IP or Modbus
  • USB/Ethernet and over-the-air configuration and programming

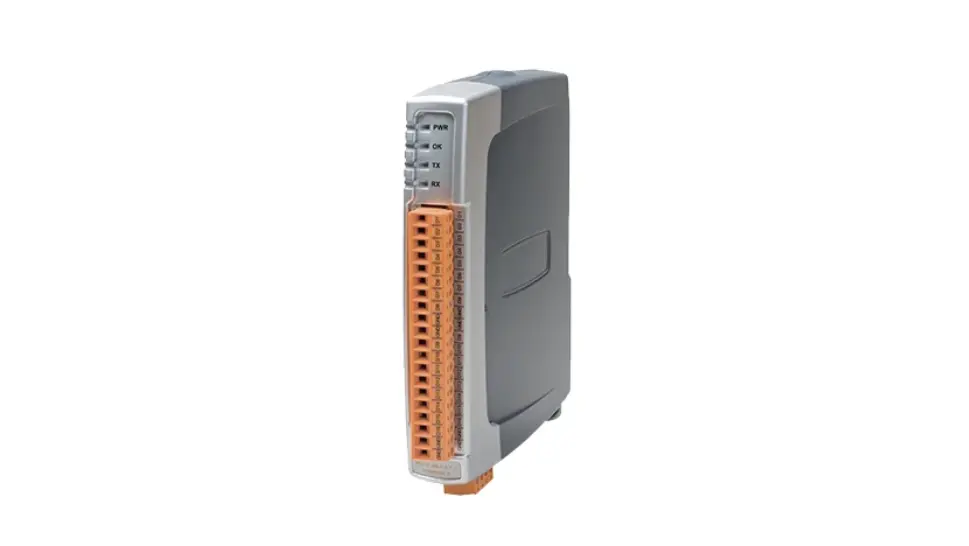

2.4GHz WI-I/O-2-E-N-GBL Wireless I/O and Gateway

2.4Ghz WI-I/O-2-E-N-GBL Wireless I/O and Gateway

The Weidmuller WI-I/O-2-E-N wireless networking I/O and gateway is a multiple I/O node that extends communications to sensors and actuators in local, remote, or difficult to reach locations. Designed with a standards based 802.11b/g/n wireless transceiver, the WI-I/O-2-E-N can provide IP-based networking across sprawling industrial environments typical of industrial applications and includes built-in I/O capability for digital and analog inputs and outputs.

WI-I/O-415-U2 Wireless I/O & Gateway

Long range scalable industrial wireless I/O radio for reliable and secure connectivity for 400MHz bands

Full Ethernet protocol over the air provides a standards-based flexibility to support future and legacy devices.

Gateway now supports IoT with MQTT and Sparkplug gateway for local inputs/outputs and external devices.

The latest Condor Series IoT I/O Gateway now includes support for MQTT and Sparkplug allowing IoT connectivity directly at the plant or equipment being monitored or controlled.

Includes data throughput to an industry-leading 140kbps at 25kHz channel using efficient context-based data compression in licensed applications and up to 10W of transmit power. 148 - 174MHz, 340–480MHz Model Options
