No longer left in the dark in cabinets and in the field

No longer left in the dark in cabinets and in the field

The control cabinet is often a work area without much lighting. Here, a space-saving, bright and at the same time affordable solution is needed. Lighting systems in machines and industrial environments must also meet high requirements such as longevity and maximum protection. Here, our different series serve the optimal use: Series WIL, Series WIL-S, Series WIL-L, und Series WIL-E.

Robust and durable

Robust and durable

With special safety glass or full encapsulation, we offer a choice of different protection classes (IP54-IP69).

Powerful and economical

Powerful and economical

High luminosity and comfortable, daylight-like lighting. Swiveling mounting brackets allow optimal positioning of the light field.

Plug-and-play

Plug-and-play

Open cable end, M12 or M8 connection for individual use.

Product range

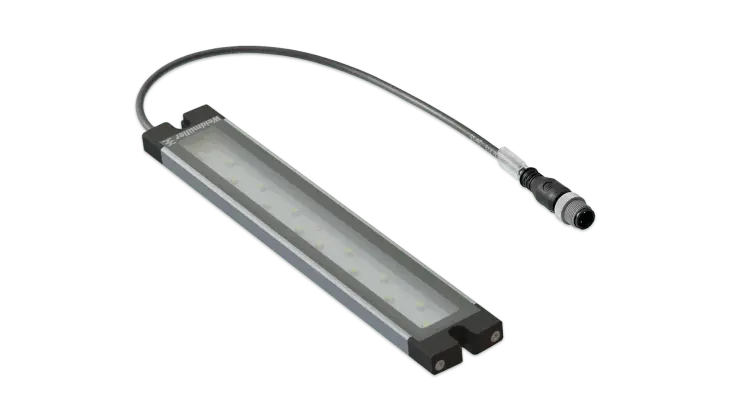

Series WIL

LED light with flat installation height for optimal use in the control cabinet

  • Extremely small and robust LED light in IP67, available in different lengths and colours.
  • M12 connector for fast and easy connection to the power supply.
  • Wide light cone thanks to unique three-row offset arrangement of LEDs.

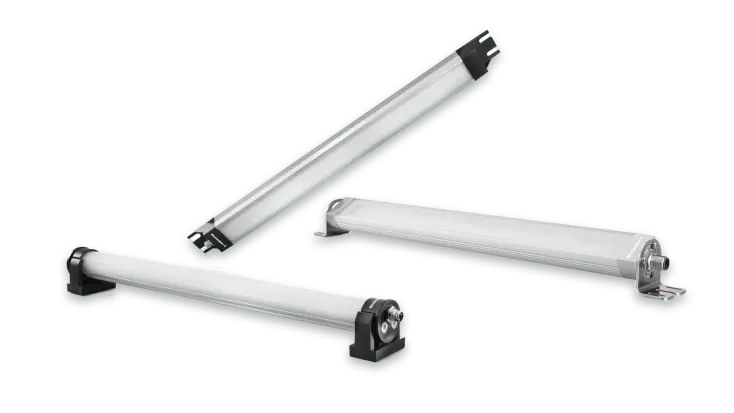

Series WIL-L

Swiveling LED light for use in machine rooms

  • Modular series connection thanks to singular voltage supply and plug-and-play thanks to M12 connection technology.
  • Perfectly protected by different covers for the LEDs and easy to mount and swivel.
  • Individual application possibilities due to voltage range 12-30V and stepless dimmability at 5700K light color.

Series WIL-E

LED light for focused lighting of machine processes

  • Protection and homogeneous illumination due to cover made of robust PMMA.
  • Focused light to optimally illuminate individual work areas and plug-and-play thanks to M8 connection technology.
  • Individual application possibilities due to voltage range 12-30V and stepless dimmability at 5700K light color.

Series WIL-S

Compact LED light for industrial environment

  • Different lengths and a flat installation height of approx.18mm as well as plug-and-play due to M8 connection technology.
  • Robust and protected thanks to high tightness and additional protection against ingress of solid foreign bodies ≥ 1.0mm (IP69).
  • Individual application possibilities due to voltage range 12-30V and stepless dimmability at 5700K light color.

Industry light WIL

Economical lighting of control cabinets and devices in the field

  • Extremely small and robust LED light in IP67, available in different lengths and colors
  • M12 connector for fast and easy connection to the power supply
  • Wide light cone thanks to unique three-row offset arrangement of LEDs

WIL power supply

24 VDC power supplies with M12 connector for WIL LED luminaires

  • Space-saving due to an extremely compact design
  • Particularly robust due to fully encapsulated IP65 housing
  • Fast installation due to M12 standard connectors

WIL with multicolor

Only 8mm high LED light for 24V DC with very high luminous efficacy and high lifespan (greater 60 000h)

  • Red/yellow/green light spectrum
  • The light spectrum can emit typical traffic light signals
  • Colors are controlled separately to generate the desired signal

WIL for vehicle interiors

WIL-LED lamp with car plug and magnet

  • LED light with power supply via 12 V electrical system plug
  • For use in commercial vehicles for illuminating the interior or tool room
  • Benefit from the optimal illumination, flat construction and reversible mounting

WIL motion detector

With screw connection, 3m supply cable and M12 cable for connection to the WIL

  • Motion detector with adjustable lighting time.
  • For plug-and-play use in control cabinets.
  • Suitable for WIL standard.

WIL swivel base

Swivel bracket for WIL lights, very high quality version without detent

  • Posture for adjusting the lighting direction in the control cabinet.
  • Power supply IP65 for WIL standard family
  • 85V-264V AC input, 24V DC output 400mA

WIL door switch

Door switch for automatic lighting when the cabinet is opened

  • Pre-assembled with an M12 cable and an access line
  • Simple Plug and Produce feature with our WIL LED lamp series
