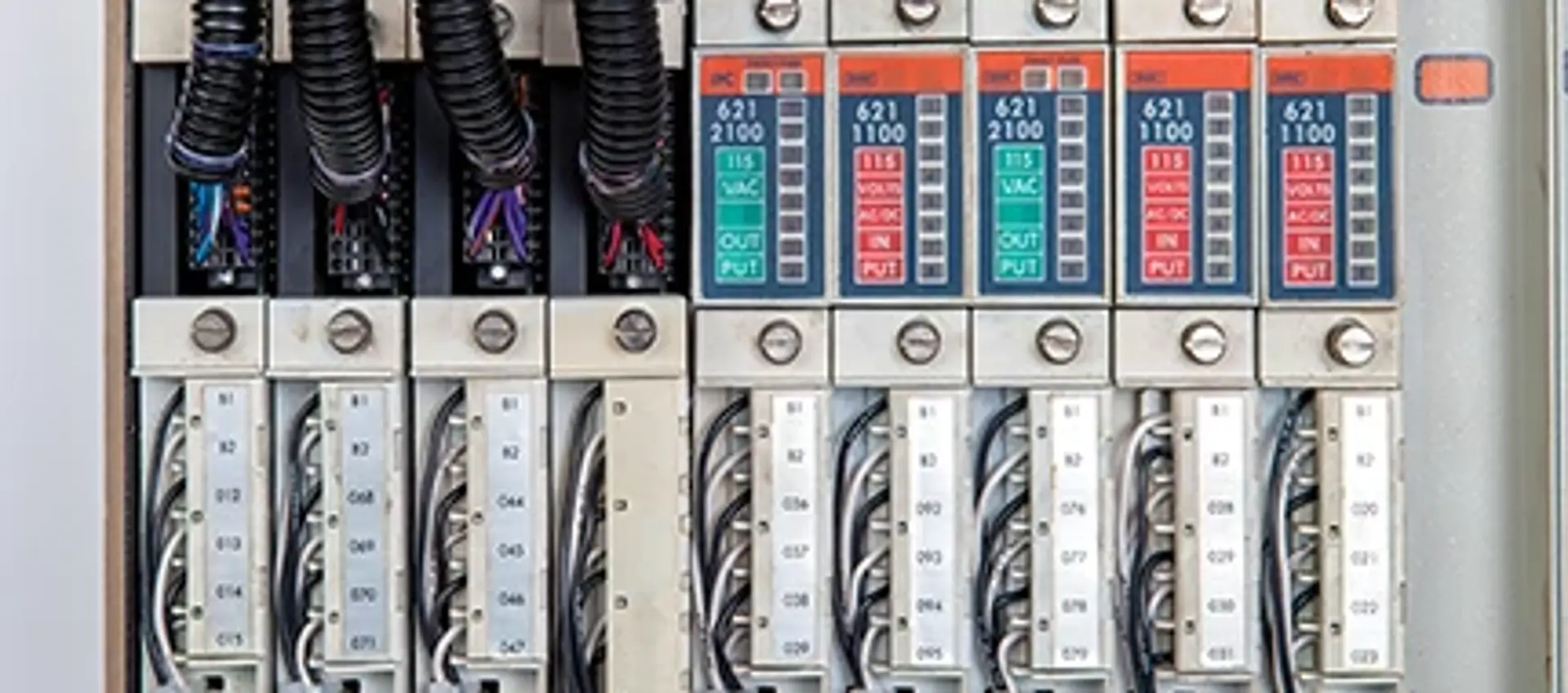

Honeywell IPC 620 Migration Solution

Honeywell IPC 620 Migration Solution

Benefits:

  • Keep your existing field terminations landed. No ring out needed!
  • Perform your DCS conversion in hours instead of weeks.
  • All components are plug-and-play with keyed connectors to eliminate any chance of wiring errors.

To Technical Data

Step-by-Step Instructions

Please click on the images below to view the migration steps.

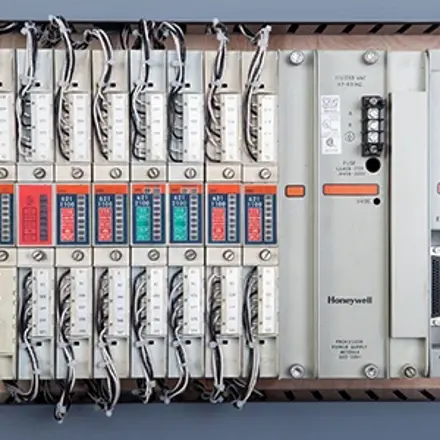

Start

Existing IPC Logic Manager

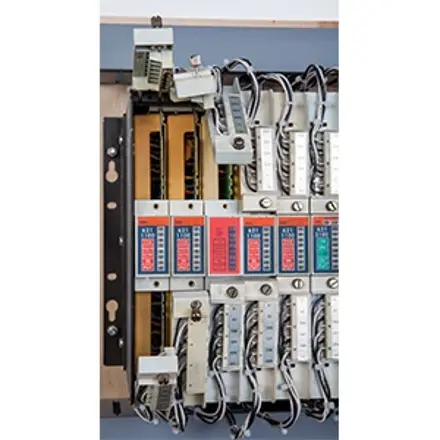

Step 1

Remove existing Field Wiring adapters

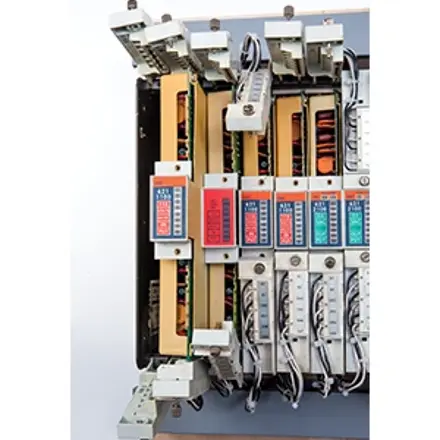

Step 2

Remove existing controller cards

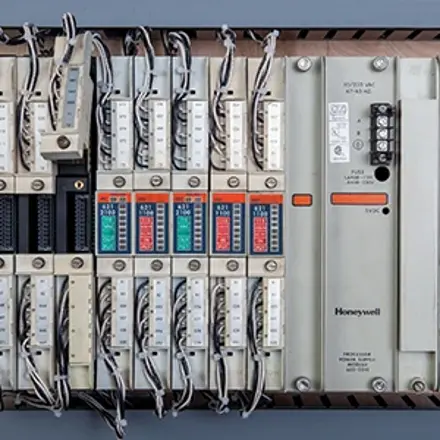

Step 3

Replace controller card with Weidmüller adapter card

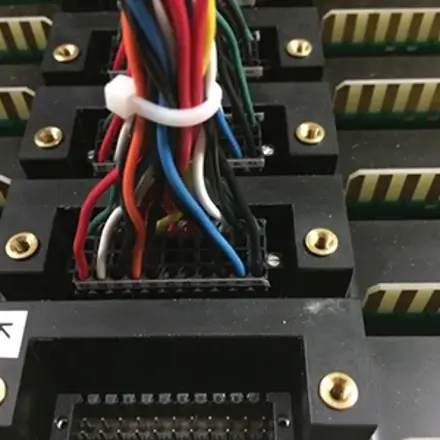

Step 4

Connect cable with connectors to adapter card

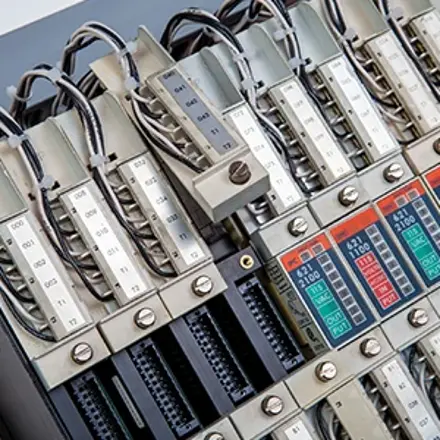

Step 5

Reattach existing Field Wiring adapters

Download

Download: DCS Migration IPC 620 — This Weidmuller brochure details a universal migration platform for legacy Honeywell IPC‑620 DCS systems, using adaptor cards and engineered cables to enable plug‑and‑play conversion while keeping existing field wiring in place. It outlines a step‑by‑step process that allows system upgrades in hours instead of weeks without rewiring or ring‑out.
