Rockwell PLC 5 Migration Solution

Rockwell PLC 5 Migration Solution

Benefits:

Keep your existing field terminations landed. No ring out needed!
Perform your PLC conversion in hours instead of weeks.
All components are plug-and-play with keyed connectors
to eliminate any chance of wiring errors.

To Technical Data

Step-by-Step Instructions

Please click on the images below to view the migration steps.

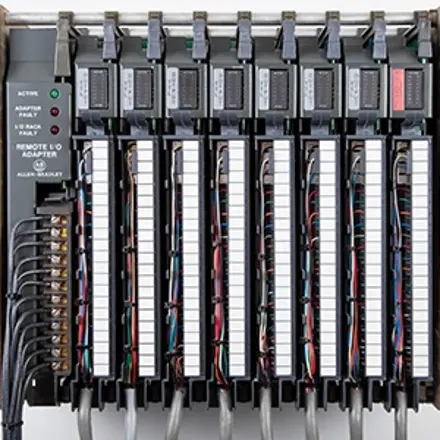

Start
Existing PLC 5 Manager

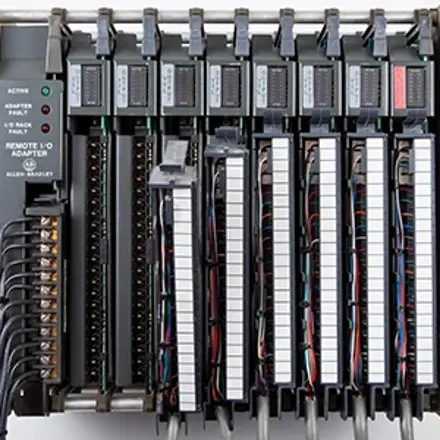

Step 1
Remove existing Field Wiring adapters

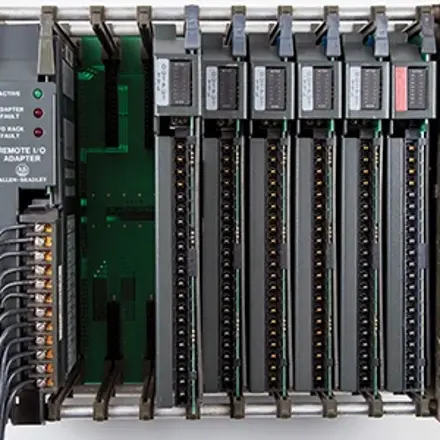

Step 2
Remove existing controller cards

Step 3
Remove all key codes from the backplane connectors

Step 4
Replace controller card with Weidmüller adapter card

Step 5
Connect cable with connectors to adapter card

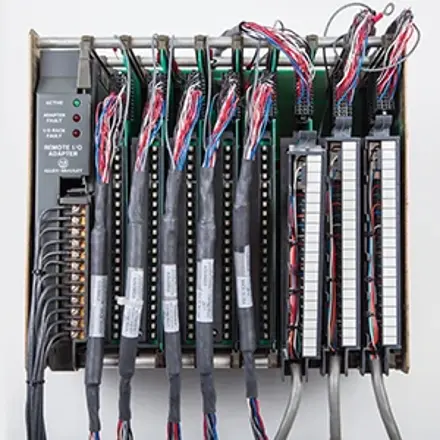

Step 6
Reattach existing Field Wiring adapters

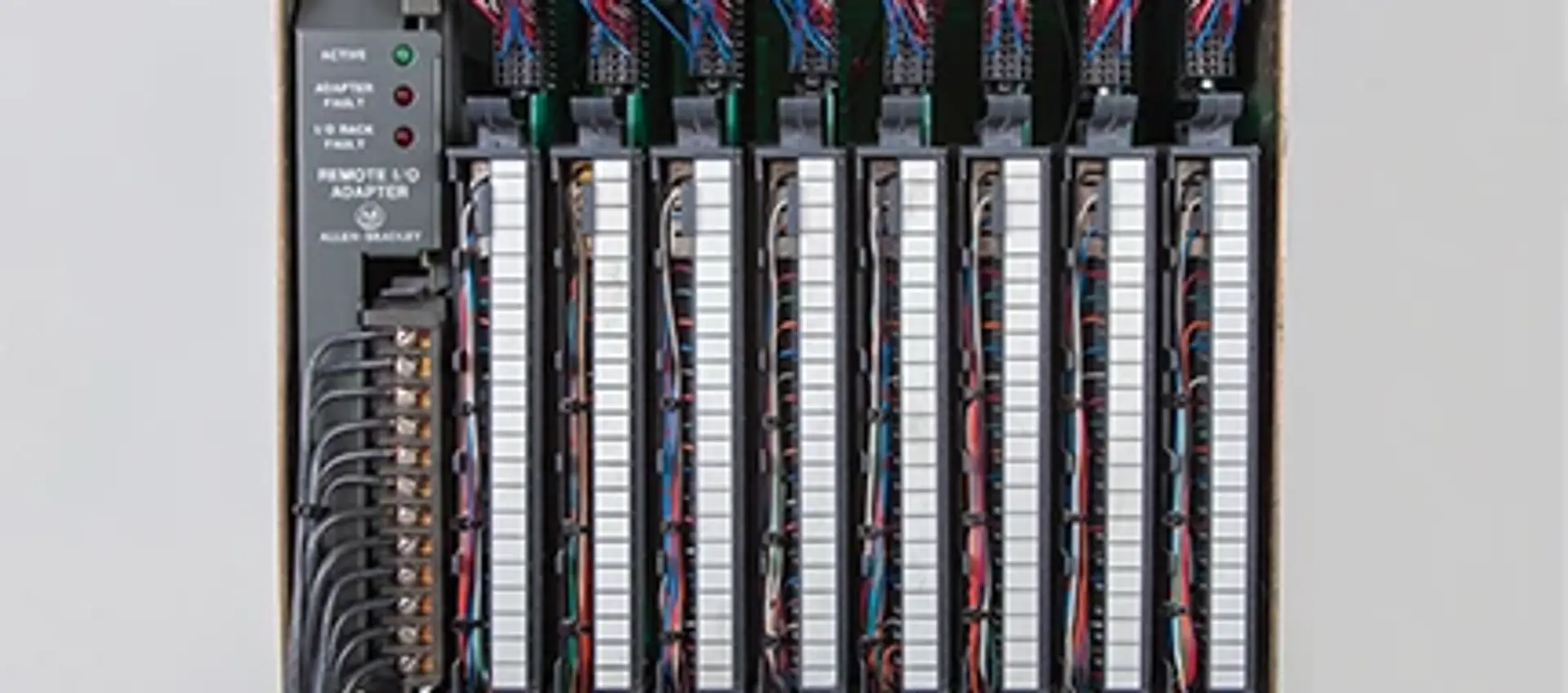

Finished
Completed and migrated DCS system

Download

Brochure
PLC 5 Migration

6.4 MB
