PLC 5 Migration, adapter

PLC 5 Migration, adapter

Weidmüller’s universal conversion/migration platform will substantially reduce the time and expense of updating your legacy systems to any new PLC or DCS system.

Benefits:

  • Keep your existing field terminations landed. No ring out needed!
  • Perform your PLC conversion in hours instead of weeks.
  • All components are plug-and-play with keyed connectors to eliminate any chance of wiring errors.

To Technical Data

Step-by-Step Instructions

Update your PLC/DCS system quickly, easily, and without errors. Click on the images below to view the migration steps.

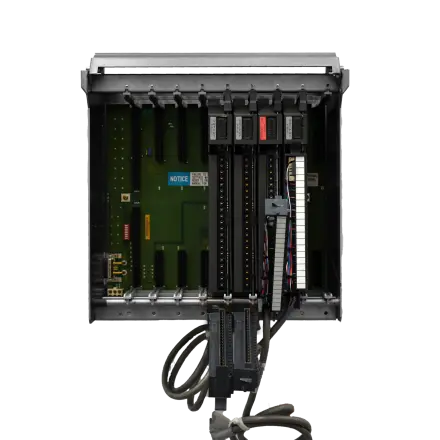

Step 1

Disengage swing arms from 1771 modules

Step 2

Remove the 1771 chassis from the cabinet

Step 3

Replace with new adapter chassis

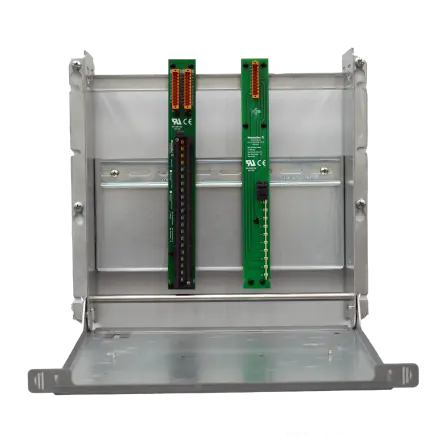

Step 4

Install adapter card on chassis

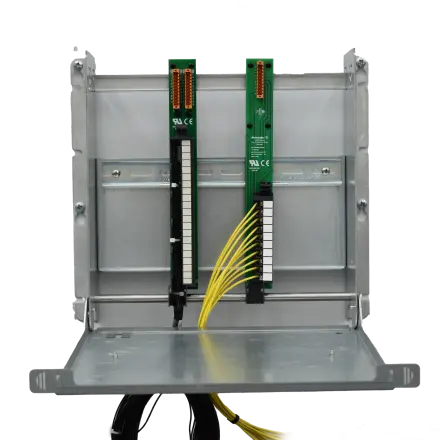

Step 5

Re-terminate the swing arm

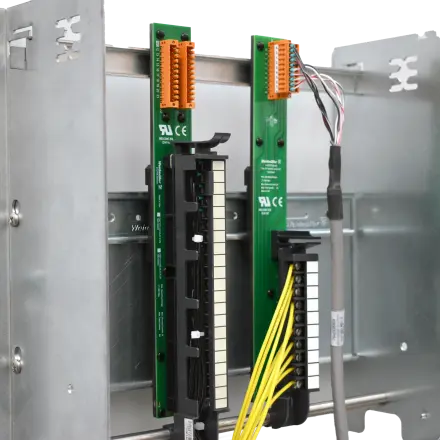

Step 6

Connect the migration cable to the adapter.

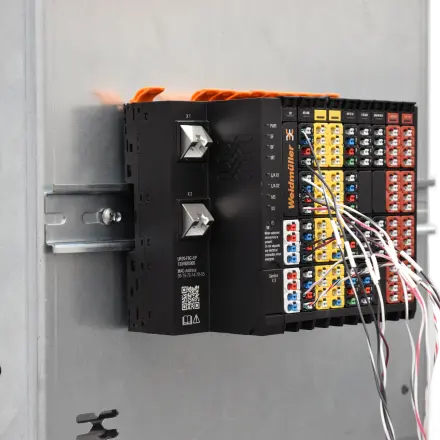

Step 7

Mount the new PLC and connect adapter cable to new I/O card

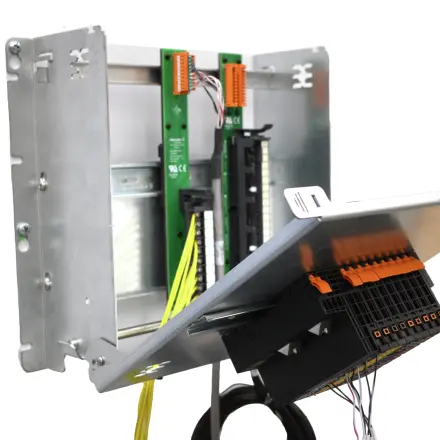

Finished

Completed PLC 5 migration
