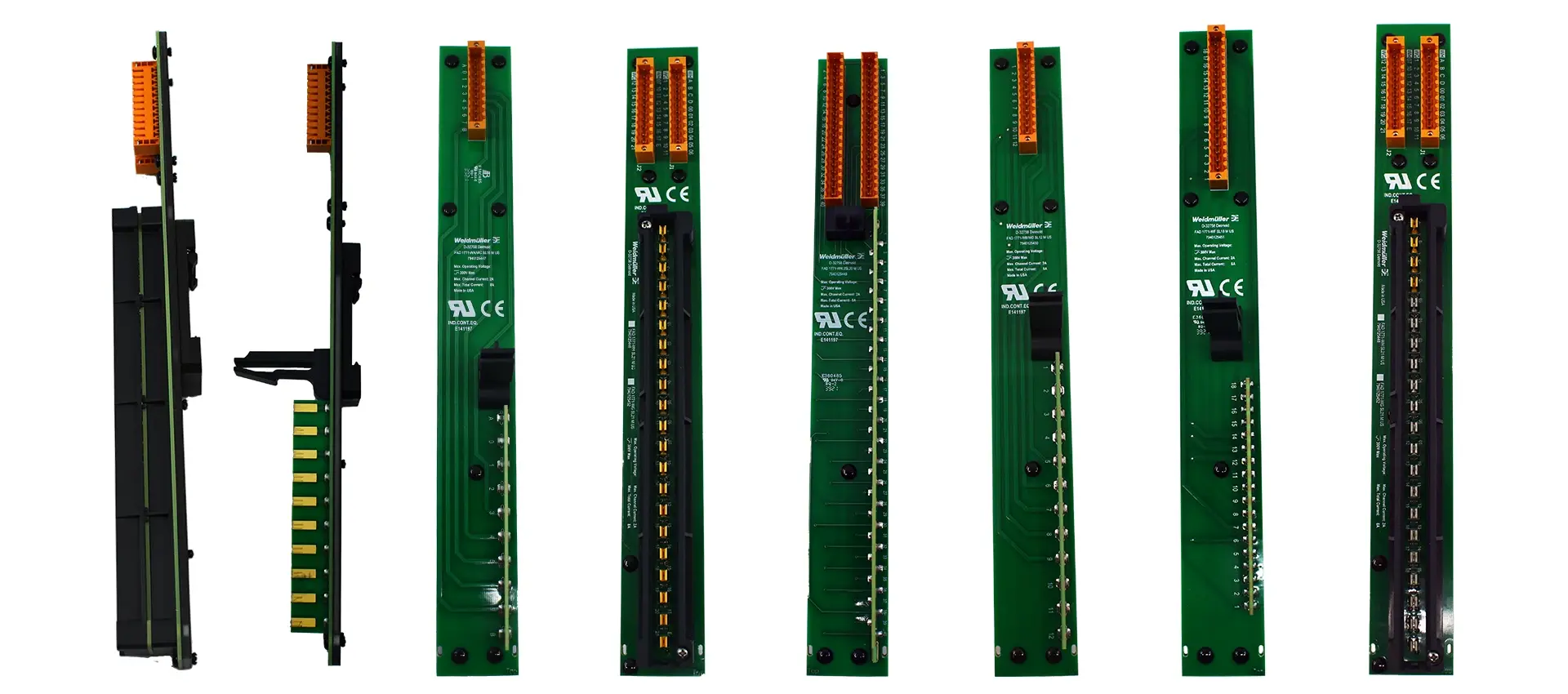

With increasing plant complexity, the obsolescence of certain PLCs and the relentless growth in demand for I /O signlas, many installations or plants are having to replace existing controllers with new ones, without modifying existing field cabling. With the aid of adapters, pre-assembled cables and interfaces from Weidmüller the problem of replacing one PLC system with another can be solved easily and safely: users can maintain the existing field cabling, test the new system and keep installation downtimes to a minimum.
FAD 1771-WA/WC SL10 M
| Dimensions and weights |
| Depth 53 mm / 2.087 in. |
| Height 269 mm / 10.591 in. |
| Width 32 mm / 1.26 in. |
| Length 269 mm / 10.591 in. |
| Net weight 160 g |
| Temperatures |
| Storage temperature 0...50°C |
| Operating temperatures 0...50°C |
| Connection Data |
| Connection to PLC SL 3.5/F 18p connector |
| Ratings Data |
| Max. current per channel 2 A |
| Total operating current 8A |
| Insultation coordination (EN50178) |
| According to DIN EN 50178 |
| Surge voltage category II |
| Insulation test voltage 1.2 kVAC |
| Rated insulation voltage < 300 V AC |
| Pollution severity level 2 |
| Classifications |
| ETIM 6.0: EC002584 |
| ETIM 7.0: EC002584 |
| ETIM 8.0: EC002584 |
| ETIM 9.0: 27-33-02-92 |
| ECLASS 9.1: 27-24-22-92 |
| ECLASS 10.0: 27-33-02-92 |
| ECLASS 11.0: 27-33-02-92 |
| ECLASS 12.0: 27-33-02-92 |
| Approvals |
| CE, EAC, UR |
FAD 1771-WH SL21 M
| Dimensions and weights |
| Depth 33 mm / 1.299 inch |
| Height 269 mm / 10.591 inch |
| Width 32 mm / 1.26 inch |
| Length 269 mm / 10.591 in. |
| Net weight 205 g |
| Temperatures |
| Storage temperature 0...50°C |
| Operating temperatures 0...50°C |
| Connection Data |
| Connection to PLC 2 x SL 3.5/F 11p connector |
| Ratings Data |
| Max. current per channel 2 A |
| Total operating current 8A |
| Insultation coordination (EN50178) |
| According to DIN EN 50178 |
| Surge voltage category II |
| Insulation test voltage 1.2kVAC |
| Rated insulation voltage < 250 V AC |
| Pollution severity level 2 |
| Classifications |
| ETIM 6.0: EC002584 |
| ETIM 7.0: EC002584 |
| ETIM 8.0: EC002584 |
| ETIM 9.0: 27-33-02-92 |
| ECLASS 9.1: 27-24-22-92 |
| ECLASS 10.0: 27-33-02-92 |
| ECLASS 11.0: 27-33-02-92 |
| ECLASS 12.0: 27-33-02-92 |
| Approvals |
| CE, EAC, UR |
FAD 1771-WN 2SL20 M
| Dimensions and weights |
| Depth 33 mm / 1.299 inch |
| Height 269 mm / 10.591 inch |
| Width 32 mm / 1.26 inch |
| Length 269 mm / 10.591 in. |
| Net weight 170 g |
| Temperatures |
| Storage temperature 0...50°C |
| Operating temperatures 0...50°C |
| Connection Data |
| Connection to PLC 2 x SL 3.5/F 20p connector |
| Ratings Data |
| Max. current per channel 2 A |
| Total operating current 8A |
| Insultation coordination (EN50178) |
| According to DIN EN 50178 |
| Surge voltage category II |
| Insulation test voltage 1.2 kVAC |
| Rated insulation voltage < 250 V AC |
| Pollution severity level 2 |
| Classifications |
| ETIM 6.0: EC002584 |
| ETIM 7.0: EC002584 |
| ETIM 8.0: EC002584 |
| ETIM 9.0: 27-33-02-92 |
| ECLASS 9.1: 27-24-22-92 |
| ECLASS 10.0: 27-33-02-92 |
| ECLASS 11.0: 27-33-02-92 |
| ECLASS 12.0: 27-33-02-92 |
| Approvals |
| CE, EAC, UR |
FAD 1771- WB/WD SL21 M
| Dimensions and weights |
| Depth 33 mm / 1.299 inch |
| Height 269 mm / 10.591 inch |
| Width 32 mm / 1.26 inch |
| Length 269 mm / 10.591 in. |
| Net weight 162 g |
| Temperatures |
| Storage temperature 0...50°C |
| Operating temperatures 0...50°C |
| Connection Data |
| Connection to PLC SL 3.5/F 12p connector |
| Ratings Data |
| Max. current per channel 2 A |
| Total operating current 8A |
| Insultation coordination (EN50178) |
| According to DIN EN 50178 |
| Surge voltage category II |
| Insulation test voltage 1.2kVAC |
| Rated insulation voltage < 300 V AC |
| Pollution severity level 2 |
| Classifications |
| ETIM 6.0: EC002584 |
| ETIM 7.0: EC002584 |
| ETIM 8.0: EC002584 |
| ETIM 9.0: 27-33-02-92 |
| ECLASS 9.1: 27-24-22-92 |
| ECLASS 10.0: 27-33-02-92 |
| ECLASS 11.0: 27-33-02-92 |
| ECLASS 12.0: 27-33-02-92 |
| Approvals |
| CE, EAC, UR |
FAD 1771-WA/WC SL10 M
| Dimensions and weights |
| Depth 53 mm / 2.087 in. |
| Height 269 mm / 10.591 in. |
| Width 32 mm / 1.26 in. |
| Length 269 mm / 10.591 in. |
| Net weight 159 g |
| Temperatures |
| Storage temperature 0...50°C |
| Operating temperatures 0...50°C |
| Connection Data |
| Connection to PLC SL 3.5/F 18p connector |
| Ratings Data |
| Max. current per channel 2 A |
| Total operating current 8A |
| Insultation coordination (EN50178) |
| According to DIN EN 50178 |
| Surge voltage category II |
| Insulation test voltage 1.2 kVAC |
| Rated insulation voltage < 250 V AC |
| Pollution severity level 2 |
| Classifications |
| ETIM 6.0: EC002584 |
| ETIM 7.0: EC002584 |
| ETIM 8.0: EC002584 |
| ETIM 9.0: 27-33-02-92 |
| ECLASS 9.1: 27-24-22-92 |
| ECLASS 10.0: 27-33-02-92 |
| ECLASS 11.0: 27-33-02-92 |
| ECLASS 12.0: 27-33-02-92 |
| Approvals |
| CE, EAC, UR |
FAD 1771-WG SL21 M0
| Dimensions and weights |
| Depth 33 mm / 1.299 inch |
| Height 269 mm / 10.591 inch |
| Width 32 mm / 1.26 inch |
| Length 269 mm / 10.591 in. |
| Net weight 200 g |
| Temperatures |
| Storage temperature 0...50°C |
| Operating temperatures 0...50°C |
| Connection Data |
| Connection to PLC 2 x SL 3.5/F 11p connector |
| Ratings Data |
| Max. current per channel 2 A |
| Total operating current 8A |
| Insultation coordination (EN50178) |
| According to DIN EN 50178 |
| Surge voltage category II |
| Insulation test voltage 1.2kVAC |
| Rated insulation voltage < 250 V AC |
| Pollution severity level 2 |
| Classifications |
| ETIM 6.0: EC002584 |
| ETIM 7.0: EC002584 |
| ETIM 8.0: EC002584 |
| ETIM 9.0: 27-33-02-92 |
| ECLASS 9.1: 27-24-22-92 |
| ECLASS 10.0: 27-33-02-92 |
| ECLASS 11.0: 27-33-02-92 |
| ECLASS 12.0: 27-33-02-92 |
| Approvals |
| CE, EAC, UR |
