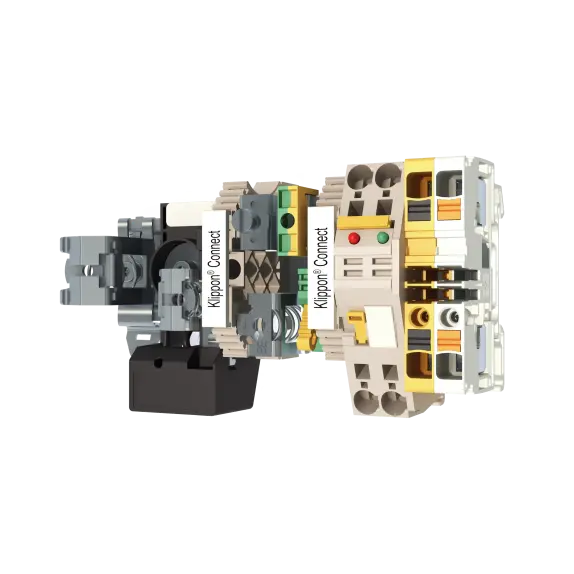

Effective protection of people and equipment

Effective protection of people and equipment

The safety and availability of plants must be guaranteed at all times. Careful planning and installation of safety functions play a particularly important role. For personnel protection, we offer a wide range of PE terminal blocks in different connection technologies. With our wide range of KLBÜ shield connections, you can achieve flexible and self-adjusting shield contacting and ensure error-free plant operation.

Your benefits at a glance

Space saving

Space saving

Perfect shielding thanks to comprehensive accessories

Time saving

Time saving

Clear, simple installation without auxiliary tools

Safety

Safety

Consistent contact pressure thanks to spring effect

Our product range

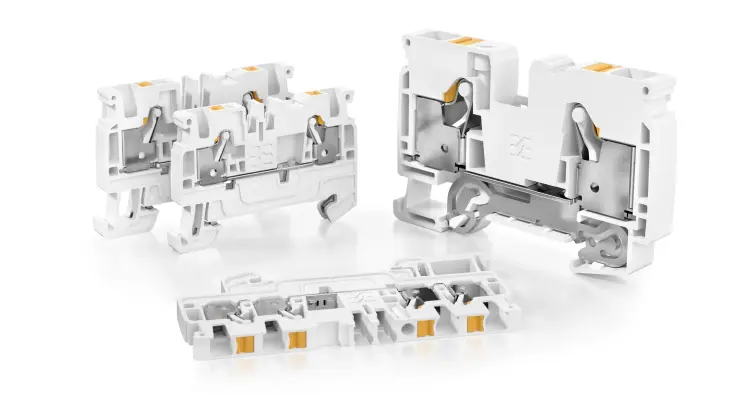

PUSH IN connection technology

PUSH IN connection technology

PUSH IN connection technology

Increase efficiency in installation without compromising on safety

Tension clamp technology

Tension clamp technology

Tension clamp technology

Universal contact system for all common conductor connection types

Screw connection technology

Screw connection technology

Screw connection technology

Patented clamping yoke technology ensures the ultimate in contact safety

Function description

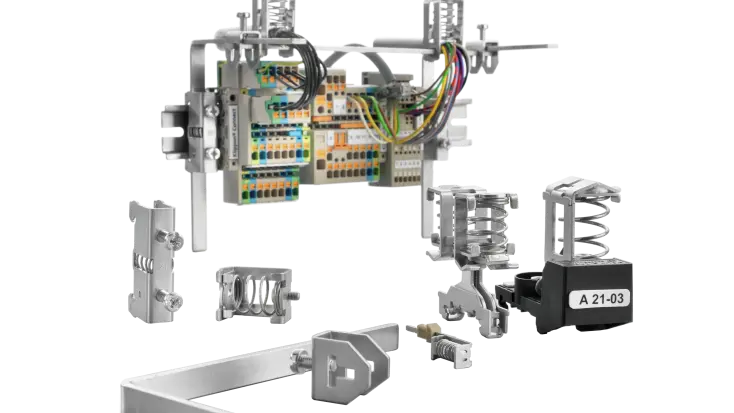

Klippon® Connect KLBUE for shielding

For a simple and efficient installation of safe shielding systems

In order to guarantee EMC, the interference mechanisms must first be known.In addition to natural sources of interference such as lightning, there are also so-called coupling mechanisms. Here is an overview of the different coupling mechanisms as well as some measures for EMC optimization.

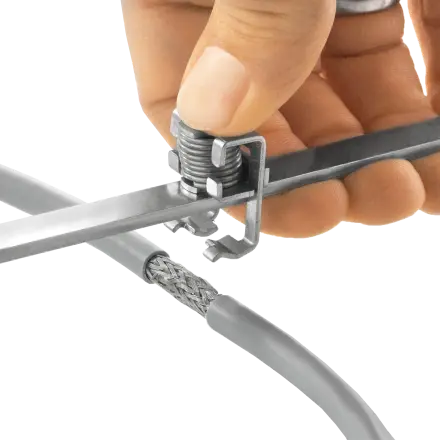

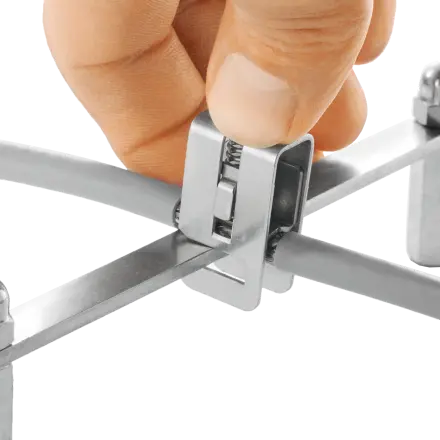

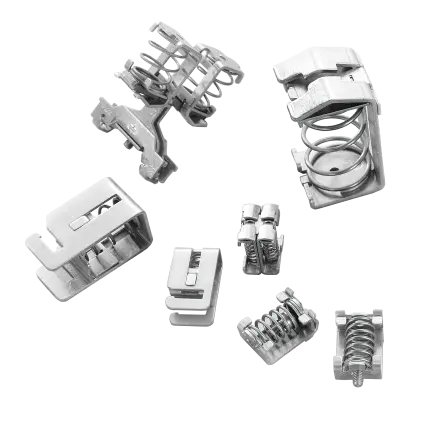

Our complete range of KLBÜ shield connections, KHLA shield clamping saddles,SH 4C shield rail holders and KLBÜ RC shielding brackets allows simple and efficient installation of safe shielding systems.

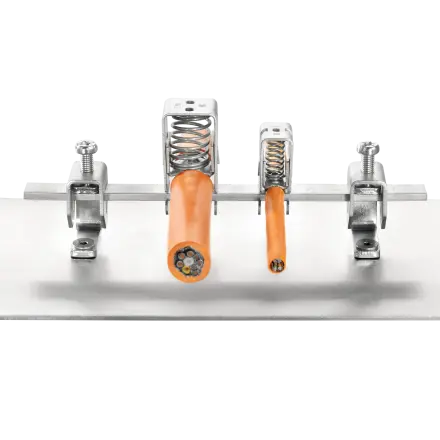

Klippon® Connect KLBUE for shielding
  • Reliable protection against transient overvoltage and electromagnetic fields
  • Consistent contact pressure thanks to spring effect
  • Flexible mounting options
  • Clear, simple installation without auxiliary tools

Potential equalization

Potential equalization

Potential equalization

Our JB 25-50 and EBB 25-50/16 potential equalization terminal blocks allow you to achieve reliably integrated potential equalization, even in extended systems.

Function description

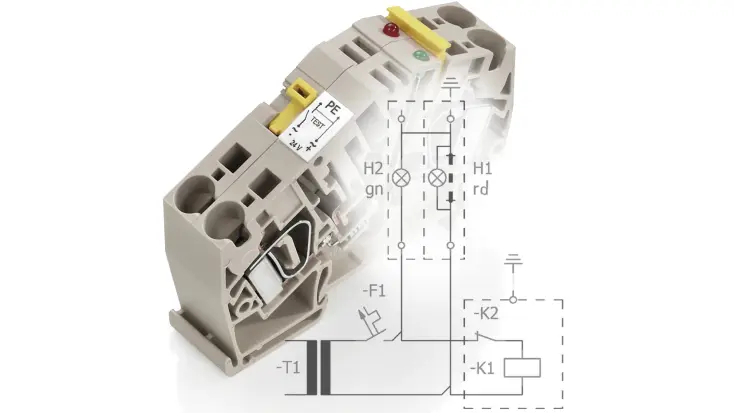

Detect earth faults easily and reliably

Klippon® Connect earth-wire disconnect terminal block

Earth-wire disconnect terminal helps detect earth faults and enables the earthing of the auxiliary circuit to be disconnected. The different kind of operation status is indicated by a red and green LED. You will find a complete description of the functionality and an overview of the respective operating states in the download area.

Detect earth faults easily and reliably
Product features and benefits
  • Integrated LED status indicator
  • Increased machine availability
  • Simple and safe separation
  • Detection of creeping earth faults
